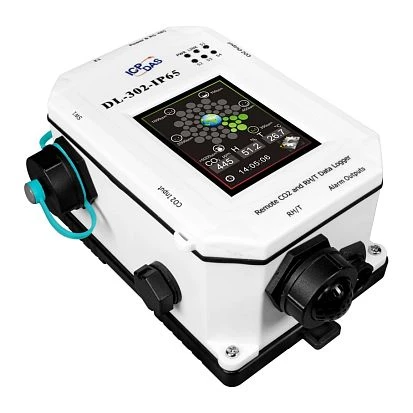

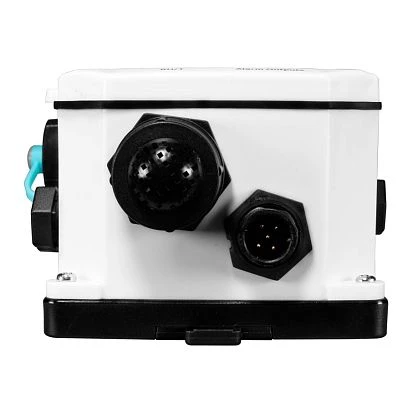

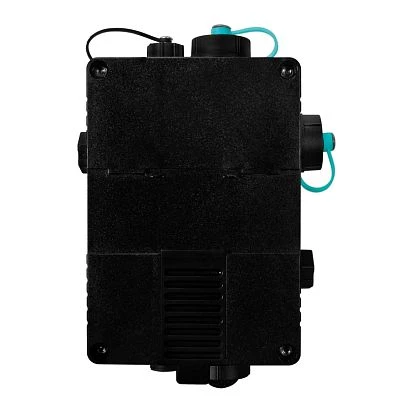

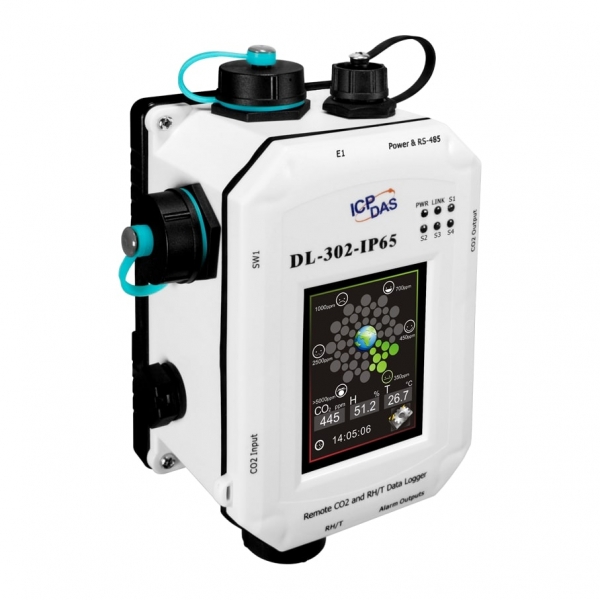

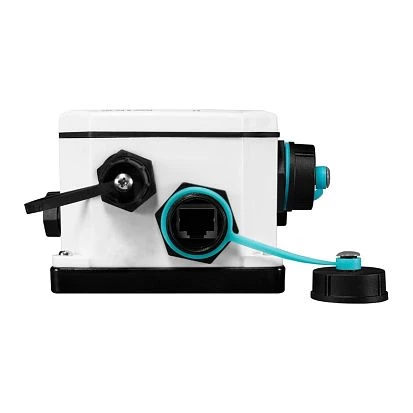

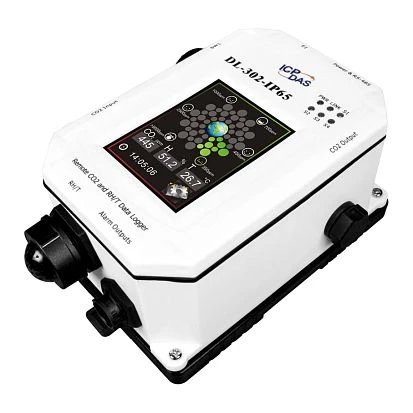

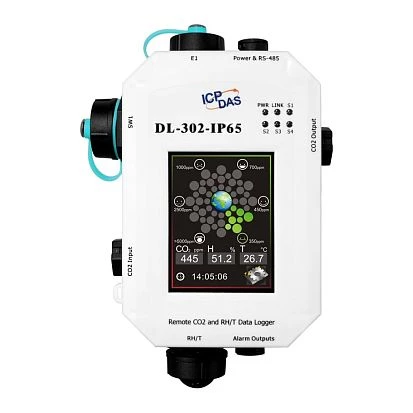

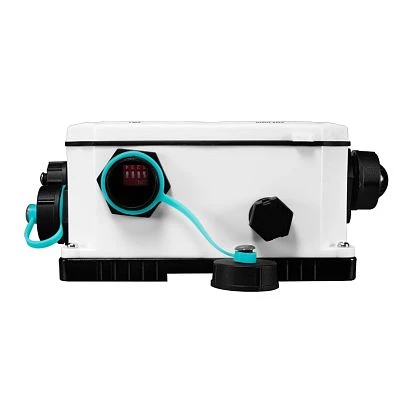

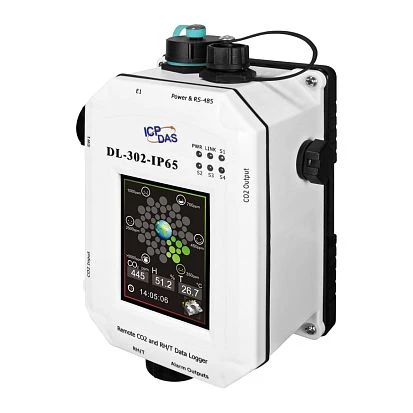

IP65 Remote CO2/Temperature/Humidity/Dew Point Data Logger with Safety Alarm (RoHS)
DL-302-IP65
ICP DAS
SKU: 66497600
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
2.8 "
Maximum resolution
320x240 Dots
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus RTU slave, MQTT client, DCON slave
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
System Power Input
Input Voltage DC
12..48 V
Interfaces
RS-485
1
Sensors
Measuring Range
-10...+50 °С
Resolution
0.1 °C
Accuracy (+/-)
0.6 °C
Measuring Range
0…100%
Resolution
0 %
Types of gases and particles measured
(CO2)
Operating Conditions
Operating Temperature
0..50 °C
Dimensions and weight
Width
117 mm
Depth
60 mm
Height
170 mm
Dimensions
Gross Weight
1 kg
