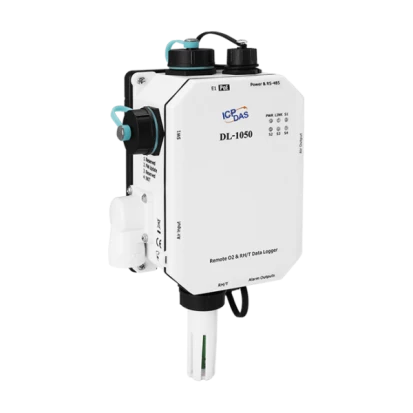

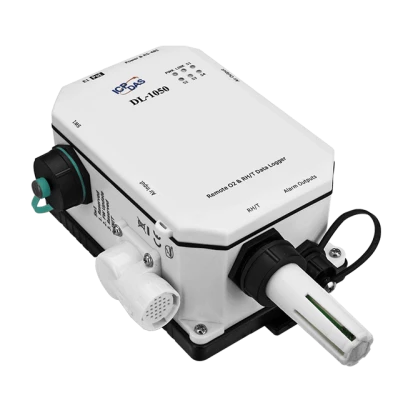

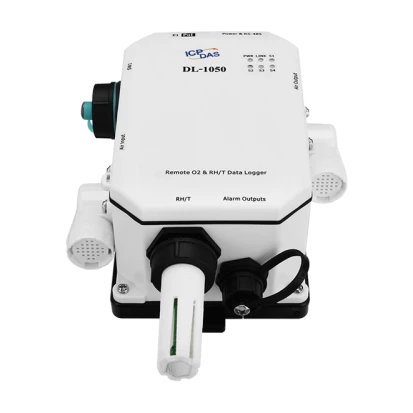

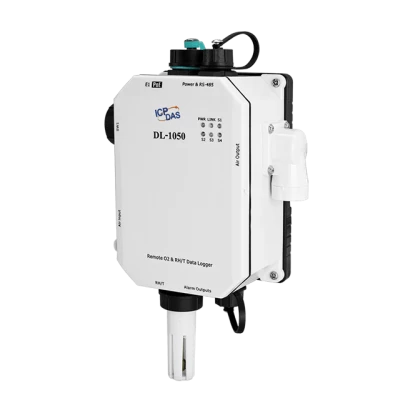

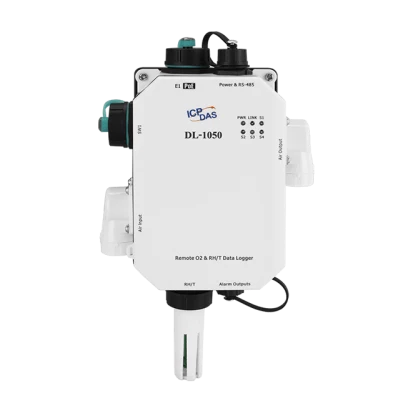

Remote O2/Temperature/Humidity/Dew Point Data Logger with Ethernet/RS-485 and PoE
DL-1050
ICP DAS
SKU: 09590600
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP43
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus RTU slave, MQTT client
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
System Power Input
Power over Ethernet (PoE)
IEEE 802.3af
Input Voltage DC
12..48 V
Interfaces
RS-485
1
Sensors
Measuring Range
-20...+50 °С
Resolution
0.1 °C
Accuracy (+/-)
0.6 °C
Measuring Range
0…100%
Resolution
0 %
Accuracy (+/-)
0 %
Measuring Range
Calculated using temperature and relative humidity
Types of gases and particles measured
(O2)
Digital Output
Total channels of digital output
4
Type
PhotoMos relay
Operating Conditions
Operating Temperature
-20..50 °C
Dimensions and weight
Width
130 mm
Depth
70 mm
Height
210 mm
Dimensions
Gross Weight
0.5 kg
