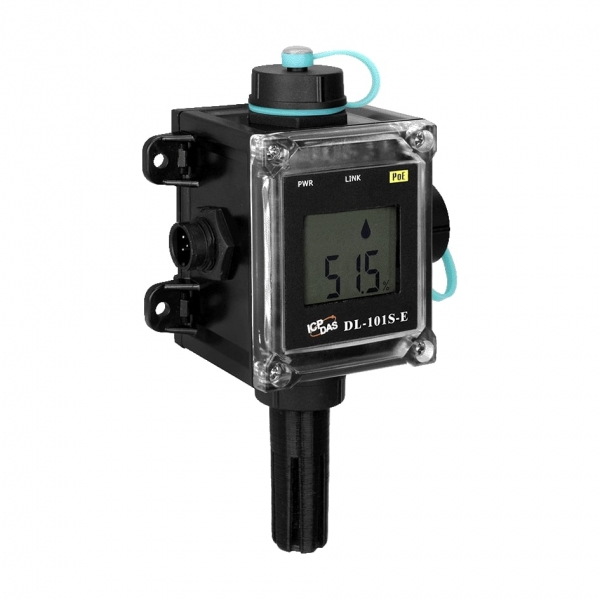

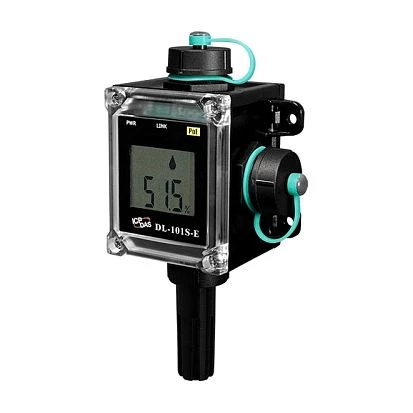

IP66 Ethernet/PoE Remote Temperature/Humidity/Dew Point Data Logger with LCD Display, Modbus TCP, MQTT, Black Cover, RoHS
DL-101S-E
ICP DAS
SKU: 09098600
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP66
Display
Display Type
LCD Character
Supported Protocols
Industrial Protocols
Modbus TCP server, MQTT client
Ethernet
10/100 Mbit/s
1
System Power Input
Power over Ethernet (PoE)
IEEE 802.3af
Input Voltage DC
12..48 V
Sensors
Measuring Range
-20...+60 °С
Resolution
0.1 °C
Accuracy (+/-)
0.4 °C
Measuring Range
0…100%
Resolution
0 %
Accuracy (+/-)
0 %
Digital Output
Total channels of digital output
2
Type
Signal Relay
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions and weight
Width
100 mm
Depth
56 mm
Height
157 mm
Dimensions
Gross Weight
0.5 kg
