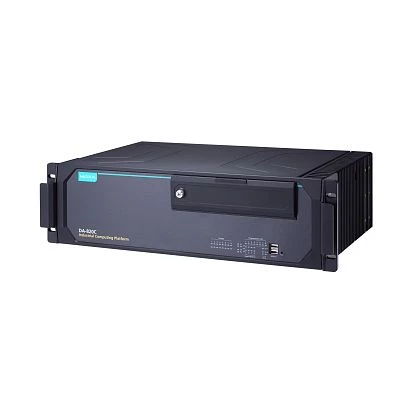

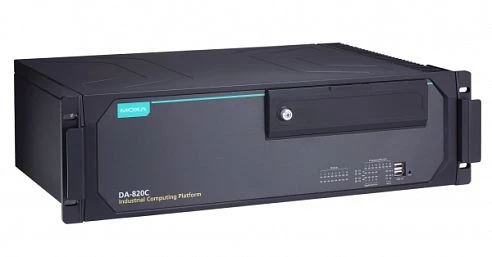

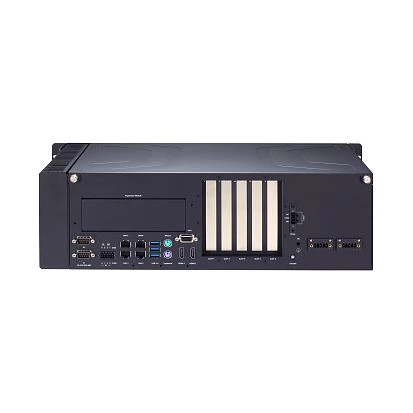

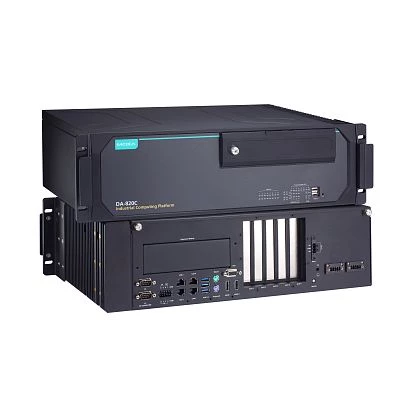

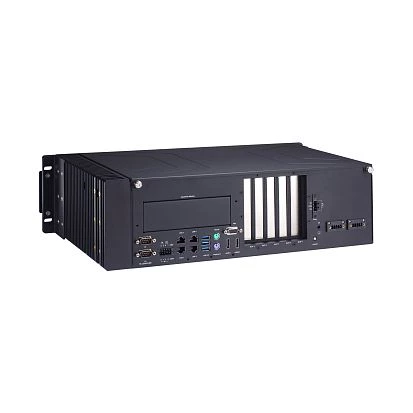

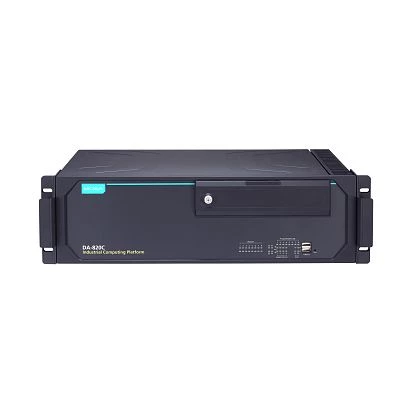

x86 3U Intel Core i7-7820EQ CPU, single 100 to 240 VAC/VDC, -25 to 55C w/o RAM/SSD/OS
DA-820C-KL7-H
MOXA
SKU: 08526500
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Height
3 U
Type
Fanless
CPU
Processor Installed
Intel Core i7-7820EQ
Max CPU frequency
3.7 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Intel HD Graphics 620
Interfaces
2xHDMI, VGA
Ethernet
Total Ethernet
4
10/100/1000 Mbit/s
4
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB 2.0
3
USB v3.x
3
Drive interfaces
RAID Levels
1, 5, 10
Storage Cage
Number Of Cage External
4
Cage Door
Yes
2.5" Cage External
4
Extension Slots
Total
5
PCI Express x16
1
PCI Express x4
1
PCI Express x1
2
PCI
1
LED / Controls
LED
1xHDD LED, Power Fail, Programmable LED Light Bar Indicator
Connectors
Internal Ports
USB 2.0
System Power Input
Input Voltage AC
100..240 V
Input Voltage DC
100..240 V
Software
Operating System Compatibility
Linux OS, Windows 10, Windows Server 2016
Dimensions and weight
Width
440 mm
Height
132.8 mm
Depth
281 mm
Operating Conditions
Operating Temperature
-25..55 °C
Standards and Certifications
Certifications
EN61000-6-2, EN61000-6-4
EMI
FCC Part 15 Subpart B Class A, CISPR 32
High Availability Automation Networks
IEC 62439-3
Power Automation
IEC 61850-3, IEEE 1613, IEC 60255
Dimensions
Net Weight
14 kg
Gross Weight
15 kg
