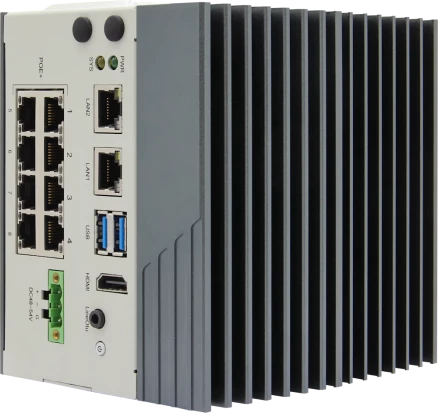

Fanless AI System, NVIDIA Jetson Orin NX 8-core SoC, NVIDIA Ampere 1024-core GPU, 16GB LPDDR5 RAM, 128GB SSD, HDMI, 2xGbE LAN, 8xPoE+ LAN, 2xUSB 3.0, 8-bit GPIO, 2xCOM, OTG, MicroSD, Audio, 1xM.2 Key-M, 1xM.2 Key-B, 1xMini-PCIe, 48VDC-in, NexRTOS
Coeus-3808P-16G
NEXCOM
SKU: 57969500
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fanless
CPU
Processor Installed
Nvidia Jetson Orin NX (8-core Arm Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3)
Socket
CPU onboard
Chipset
Chipset
SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 1024-cores, 32 Tensor Cores
Interfaces
HDMI
Ethernet
Total Ethernet
10
10/100/1000 Mbit/s
2
PoE+ 10/100/1000 Mbit/s
8
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
mSATA
1
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2280 M, 3052 B
Mini-PCIe/Mini Card
1
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED, SYSTEM LED indicator
Controls
On/Off
Connectors
Connectors
DB9, HDMI, 2xUSB, Line Out, DC input (terminal block), GPIO (terminal block), MicroSD card slot, 10xRJ45 Ethernet, Console Port Micro USB
System Power Input
Input Voltage DC
48..54 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Installed
Linux OS
Dimensions and weight
Width
106.1 mm
Height
176 mm
Depth
137 mm
Operating Conditions
Operating Temperature
-10..55 °C
Humidity
10-95%
Dimensions
Net Weight
2.2 kg
Gross Weight
2.5 kg
