BFC-07R1X6Q-00R

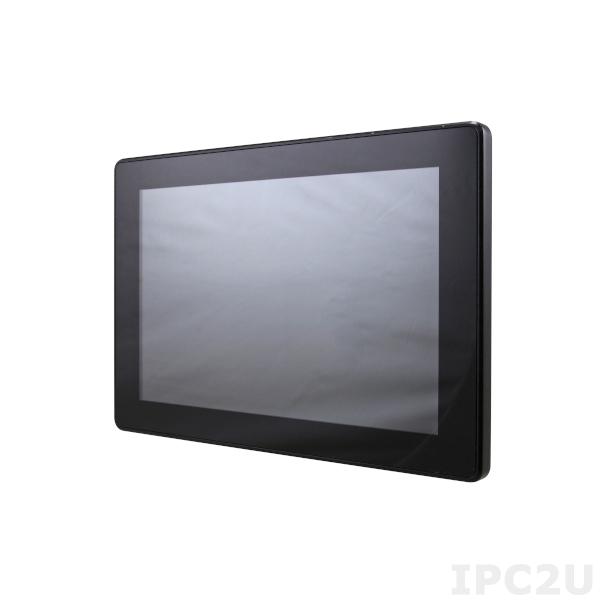

BFC-07R1X6Q-00R 7" Industrial Panel PC has Cortex-A9 ARM Dual Core CPU, 1GB DDR3 RAM, 4GB eMMC, Gigabit LAN The BFC-07R1X6Q-00R is a compact 7 '' Panel PC for IoT applications, offering an efficient and powerful SBC with a Cortex-A9 ARM processor for local mounting. The use of energy-saving components results in a very low overall absorption, which allows the fanless Industrial Panel PC to be supplied via external power supply units as well as exclusively via Power-over-Ethernet (PoE). The processor used in the Industrial Panel Computer is a 1.0GHz quad core CPU with an integrated Vivante GPU with 4 shaders, which provides 1920x1080 Full HD output via an HDMI output. The primary source of user data and operating system, the BFC-07R1X6Q-00R uses a 4 GB NAND flash memory, and can be extended via additional external drives or other USB storage solutions as well as an SD socket. A 1 GB DDR3 RAM module forms the onboard soldered RAM and serves as shared memory for GPU and CPU. Despite its compact, low-profile design, the BFC-07R1X6Q-00R has an expansion slot for Mini Size Extension Cards in Mini PCI Express. In conjunction with the optional expansion module BCC-WLAN-04R, the comfortable addition to wireless interfaces including WLAN 802.11 a/b/g/n/ac and Bluetooth 4.1 is possible. In addition to integrating external circuits and embedded microdevices beyond IoT applications, the fanless embedded PC supports RS232 COM for serial communication and dual USB 2.0 Type A for digital peripherals with integrated power supply. Both complement the BFC-07R1X6Q-00R with a side-accessible mini USB connector, a speaker and an audio input in 3.5 mm. Depending on the requirements of the environment, the Fanless Industrial Panel PC can be equipped with a debug port or a CAN bus 2.0 as additional interfaces. As a display, the BFC-07R1X6Q-00R uses a 7 '' touch screen with a projected-capacitive surface for accurate position detection with no maintenance and wear-free use over long runtimes in 24/7/365 operation. The powerful graphics allow the use of a second screen or touch screen with extended, cloned or independent desktop and a Full HD 1080p resolution. The connection to the network and communication with IoT applications and embedded devices takes place via RJ45 LAN for Gigabit Ethernet or wirelessly via WiFi as client or access point (AP). The BFC-07R1X6Q-00R has a compact, fanless and rugged design that allows it to be used in adverse conditions and as a Transportation Embedded PC in mobile environments. Operation is possible in a very wide temperature range from -20 ° Celsius to + 55 ° Celsius without active cooling, so that protected outdoor areas and unheated rooms belong to the possible locations of the Industrial Panel PC. A common task of the BFC-07R1X6Q-00R is the control of machines and small systems as SCADA and H2M terminal. In addition, the automation of processes, manufacturing steps or buildings as well as use as a kiosk PC, for example as a client interface in PoS, are in focus.
