Embedded PC with Intel Core i7-8700T 4 GHz, 8 Gb DDR4 SO-DIMM, NVidia Geforce 2080 Ti TURBO, HDMI v1.4, 1xVGA, 4xCOM, 3x2.5" SATA SSD Bays, CFast, 2xFull-size mPCIe,1xPCIe x16, 2xPCIe x4, 6xUSB, DIO, CAN, Audio, terminal block 9-36 V DC

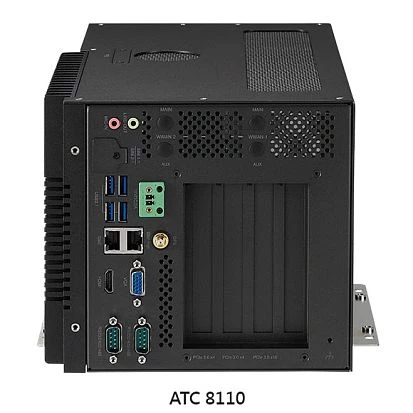

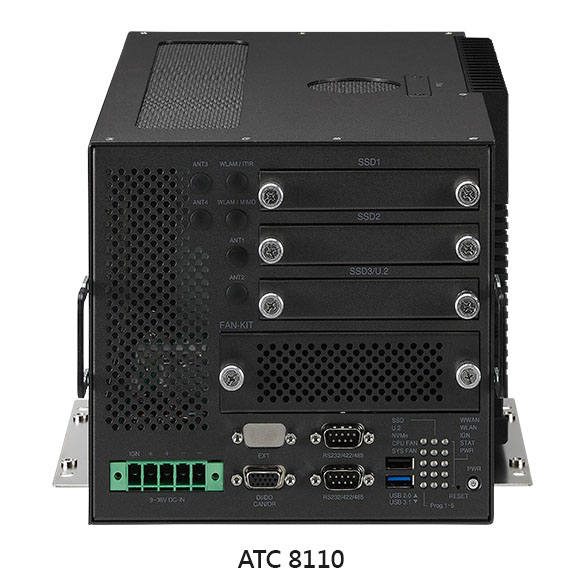

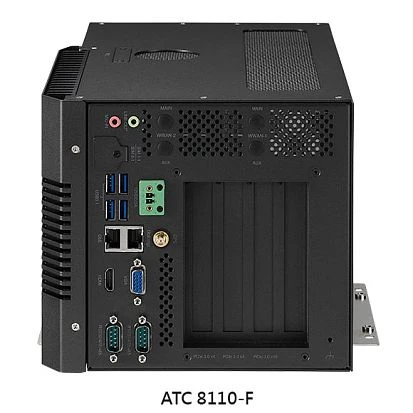

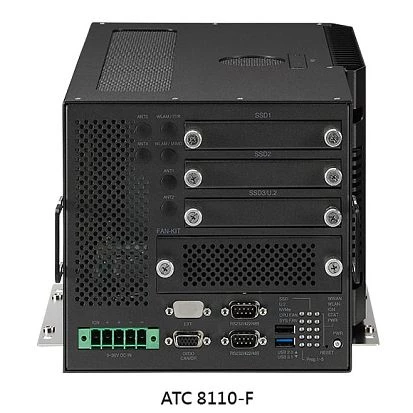

ATC-8110-F/2080Ti
NEXCOM
SKU: 08661000
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Type
Fan
CPU
СPU Generation/Family
Coffee Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel C246
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
64 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
RS-232/422/485
4
USB Total
6
USB 2.0
1
USB v3.x
5
Industrial Interfaces
CAN Port
1
Drive interfaces
CFast Slots
1
Storage Cage
Number Of Cage External
3
Extension Slots
PCI Express x16
1
PCI Express x4
4
Mini-PCIe/Mini Card
2
SIM Card slots
2
Antenna characteristics
Cellular interfaces
2G
Connectors
Connectors
DB15 VGA, HDMI, 6xUSB, 2xSIM Card Slot, SMA Male
System Power Input
Input Voltage DC
9..36 V
Dimensions and weight
Width
207.4 mm
Height
176 mm
Depth
350 mm
Operating Conditions
Operating Temperature
-30..60 °C
Vibration
IEC 60068-2-64 - 1.0g@5~500Hz (in operating, HDD), 1.6g for HDD w/ damping brackets - 2.0g@5~500Hz (in operating, SSD + graphics card)
Shock
Shock (SSD + graphics card) - Operating: MIL-STD-810G, Method 516.6, procedure I, functional shock=20g - Non-operating: MIL-STD-810G, Method 516.6, procedure V, crash hazard shock test=75g
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 516.6 Shock
Automotive
e13 Mark
Dimensions
Net Weight
8.5 kg
Gross Weight
9.5 kg
