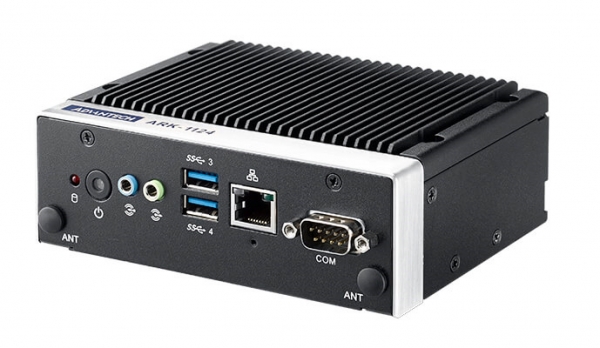

Fanless Embedded Server with Intel Atom E3940 1.6GHz, up to 8Gb DDR3L, 2xHDMI, 2xCOM, 4xUSB 3.0, 2xGbE LAN, 1x2.5" SATA III SSD/HDD, 1x mSATA, miniPCIe , M.2, 12VDC-in, -20...+60C
ARK-1124H-S6A3
Advantech
SKU: 09255300
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall, Wall VESA 100
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Atom E3940
Socket
CPU onboard
Max CPU frequency
1.8 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Audio
Audio Controller
Realtek ALC888 HD
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
1
Connectors
Connectors

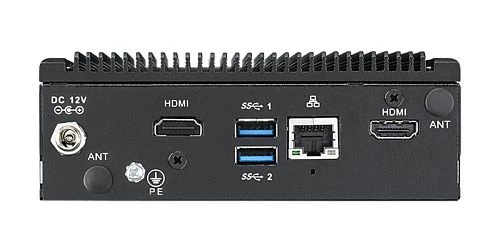

DB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Line In, Line Out, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Windows IoT Enterprise 10
Dimensions and weight
Width
133 mm
Height
46.4 mm
Depth
94.2 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Net Weight
0.8 kg
Gross Weight
1.1 kg
