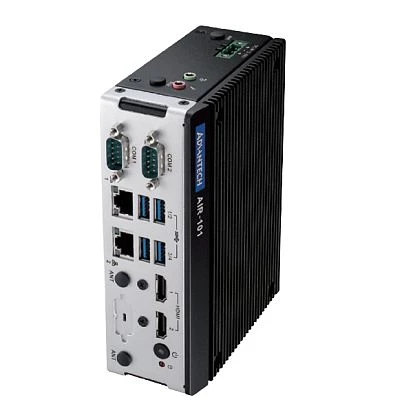

Fanless Embedded Server with Intel Atom E3940 1.6GHz, up to 1.8GHz, 2x Intel Movidius Myriad X VPU MA2485, 8Gb DDR3L, 2x HDMI 1.4, 2xGbE, 2x RS-232/422/485, 4x USB 3.0, 1x 2.5" SATAIII (64Gb), mSATA 1x MiniPCIe (VPU), 1x M.2 2230 Key E for Wi-Fi
AIR-101-S62A1
Advantech
SKU: 09128000
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Embedded, Desktop
Type
Fanless
CPU
Processor Installed
Intel Atom E3940, 2x Intel Movidius Myriad X VPU MA2485
Max CPU frequency
1.8 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR3L
Socket Type
2xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB v3.x
4
Audio
Audio Controller
Realtek ALC888
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, 2xHDMI, 2xRJ45, 4xUSB, Mic In, Line Out, DC Input
System Power Input
Input Voltage DC
12..28 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
158 mm
Height
53.5 mm
Depth
114 mm
Operating Conditions
Operating Temperature
-30..70 °C
Standards and Certifications
Certifications
CE, FCC Class A
Safety
CCC, CB, UL, BSMI
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1.2 kg
Gross Weight
1.5 kg
