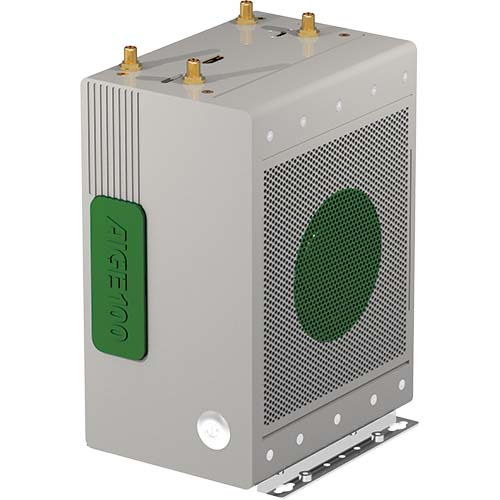

Embedded Edge AI System, NVIDIA Jetson AGX Orion, 32GB LPDDR5 RAM, 512GB M.2 SSD, 1xHDMI, 3xGbE LAN, 4xUSB 3.0, 1x USB-C OTG, 2xCOM, 1x8-bit GPIO, 1xM.2 3052 Key-B, 1xMiniPCIe Full-Size mSATA, Audio, 12-30VDC-in
AIGE-100-32G
NEXCOM
SKU: 80048200
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fanless
CPU
Processor Installed
NVIDIA Jetson AGX Orin (8-core Arm Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3)
Socket
CPU onboard
Max CPU frequency
2.2 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
32 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 1792-cores, 56 Tensor Cores
Interfaces
HDMI
Ethernet
Controller Type
Integrated with Chipset
Total Ethernet
3
10/100/1000 Mbit/s
3
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
5
USB 2.0
1
USB v3.x
4
Drive interfaces
M.2
1
mSATA
1
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
512 GB
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2280 M, 3052 B
Mini-PCIe/Mini Card
1
LED / Controls
Controls
On/Off
Connectors
Connectors
DB9, HDMI, 3xRJ45 Ethernet, 4xUSB, Line Out, DC Input, DB9 GPIO, MicroSD card slot, USB type C
System Power Input
Input Voltage DC
12..30 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS
Dimensions and weight
Width
226 mm
Height
96.8 mm
Depth
137 mm
Operating Conditions
Operating Temperature
-10..55 °C
Humidity
10-95%
Dimensions
Net Weight
3.2 kg
Gross Weight
3.9 kg
