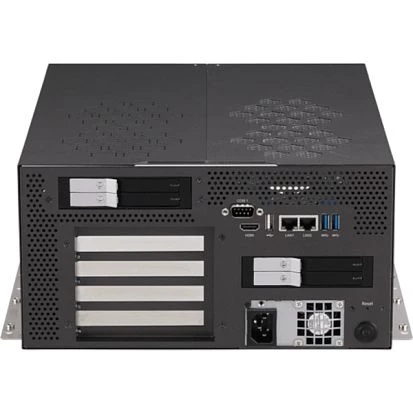

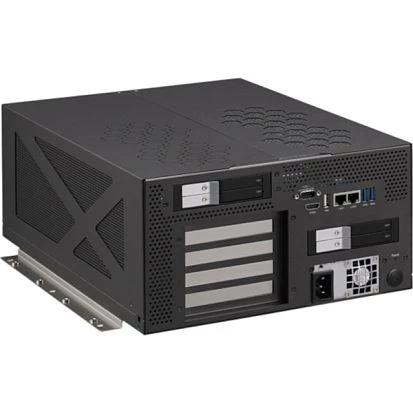

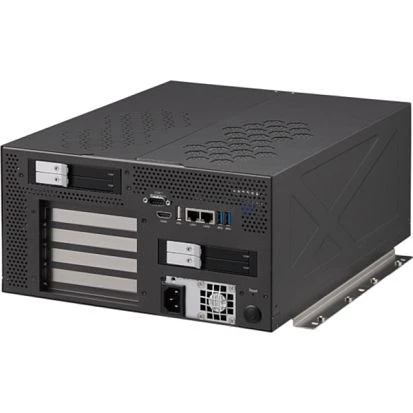

AIEdge, support Intel Core 9th/8th Gen, LGA1151, 2x260-pin SO-DIMM socket max. 32GB max DDR4 RAM, 1xHDMI, 2xGbE LAN, 4xCOM, 11xUSB, 4xSATA 2.5 HDD/SSD, 1xPCIex16, 1xPCIex4, 1xPCI, 100..240VAC, 0..45C
AIEdge-X500
NEXCOM
SKU: 57186000
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7, Core i9
Chipset
Chipset
Intel Q370
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Intel UHD Graphics 630
Ethernet
Controller Type
Intel i211, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
11
USB 2.0
7
USB v3.x
4
Drive interfaces
RAID Levels
1, 5, 10
mSATA
1
Storage Cage
2.5" Cage External
4
Extension Slots
Total
4
PCI Express x16
1
PCI Express x4
1
M.2
1
PCI
1
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 1xUSB, 2xUSB, DB9 Male
System Power Input
Input Voltage AC
100..240 V
Power Supply
Type of Power Supply
ATX, Internal
Output Power
800 W
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
290 mm
Height
150 mm
Depth
360 mm
Operating Conditions
Operating Temperature
0..45 °C
Vibration
Random: 2Grms @ 5~500 Hz, IEC60068-2-64 (with SSD) Sinusoidal: 2G @ 5~500 Hz, IEC60068-2-6 (with SSD)
Shock
50G peak acceleration, 11ms according to IEC60068-2-27
Standards and Certifications
Certifications
CE, FCC Class A
Safety
LVD
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Gross Weight
1 kg
