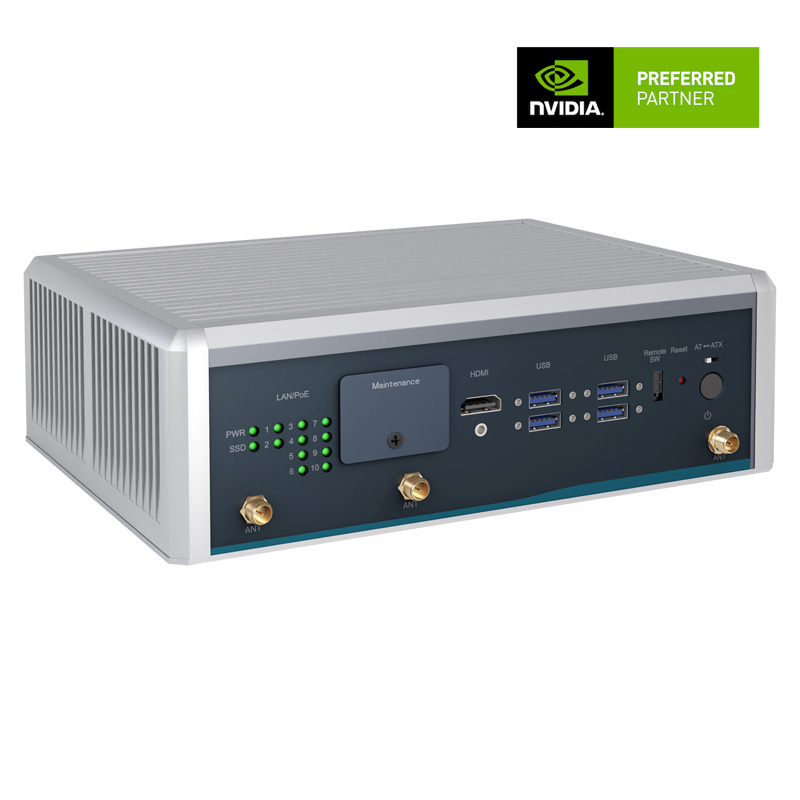

Fanless Embedded System with GPU NVidia Jetson AGX Orin, CPU 8-core Arm Cortex-A78AE, GPU Ampere, 32GB LPDDR5, 64GB eMMC, HDMI, 2x2.5GbE LAN, 8xPoE, 2xCOM/CAN, 4xUSB 3.2, 2xUSB 2.0, 24VDC-in
AIE900A-AO-2L8P
AXIOMTEK
SKU: 10197100
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall, Wall VESA 100
Protection Level of Chassis
IP40
Type
Fanless
CPU
Processor Installed
NVIDIA Jetson AGX Orin
Memory
Form-factor
DDR5
Socket Type
Soldered
Default on Board Memory
32 GB
Maximum Memory
32 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 1792-cores, 56 Tensor Cores
Interfaces
HDMI
Ethernet
Controller Type
Intel i226
Total Ethernet
10
2,5 Gbit/s
2
10/100 Mbit/s
8
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
SATA 3
2
M.2
1
MicroSD
1
Installed drive
Storage Form-Factor
eMMC
1st Storage Capacity
64 GB
Extension Slots
M.2
2
SIM Card slots
Nano SIM
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, HDMI, 6xUSB, 10xRJ45 Ethernet
System Power Input
Input Voltage DC
24..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu
Dimensions and weight
Width
239 mm
Height
185.3 mm
Depth
79.4 mm
Operating Conditions
Operating Temperature
-30..50 °C
Humidity
10-95%
Dimensions
Net Weight
2.8 kg
Gross Weight
3.45 kg
