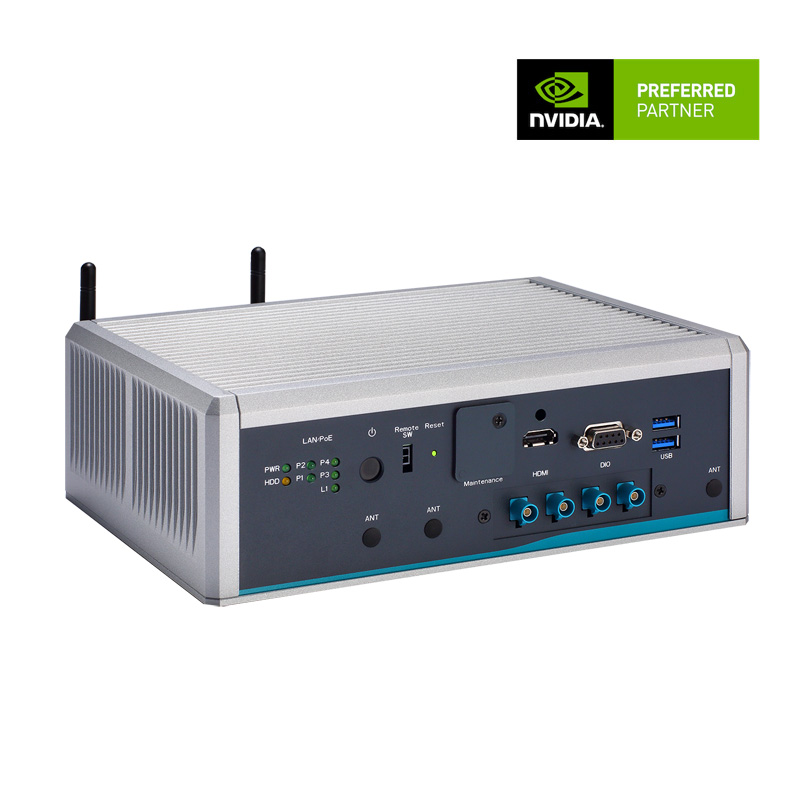

Fanless Embedded System with CPU Board GPU NVidia Jetson Xavier NX, CPU 6-core NVIDIA Carmel ARM, GPU NVIDIA Volta 384 CUDA cores, 16GB LPDDR4, 16GB eMMC, 1xHDMI, 5xGbE LAN (4x PoE), 2xUSB 3.1, PCIe Mini, M.2 2280, SIM, MicroSD, 12VDC
AIE900-XNX-16GB
AXIOMTEK
SKU: 10089700
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fanless
CPU
Processor Installed
NVIDIA Jetson Xavier NX (6-core ARM v8.2 64-bit CPU, 6MB L2 + 4MB L3)
Memory
Form-factor
DDR4
Socket Type
Soldered
Maximum Memory
8 GB
Graphic
Graphic Controller
NVIDIA Pascal
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
5
10/100/1000 Mbit/s
1
Interfaces
USB Total
3
USB 2.0
1
USB v3.x
2
Industrial Interfaces
CAN Port
2
Drive interfaces
mSATA
1
MicroSD
1
Extension Slots
M.2
1
Mini-PCIe/Mini Card
1
SIM Card slots
1
Antenna characteristics
Cellular interfaces
3G (Optional)
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 2xUSB, DC Input, 1xMicro USB
System Power Input
Input Voltage DC
19..24 V
Software
Operating System Compatibility
Ubuntu
Dimensions and weight
Width
147 mm
Height
52 mm
Depth
118 mm
Operating Conditions
Operating Temperature
-30..60 °C
Vibration
3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Standards and Certifications
Certifications
CE, FCC Class A
Safety
CCC, UL, BSMI
Dimensions
Net Weight
2.8 kg
Gross Weight
3.45 kg
