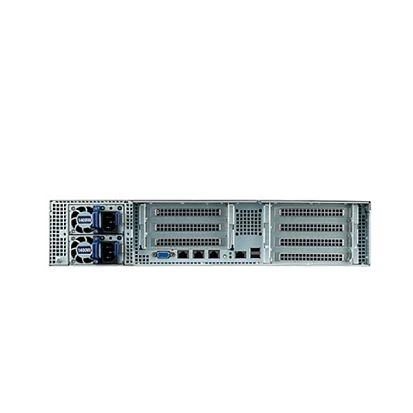

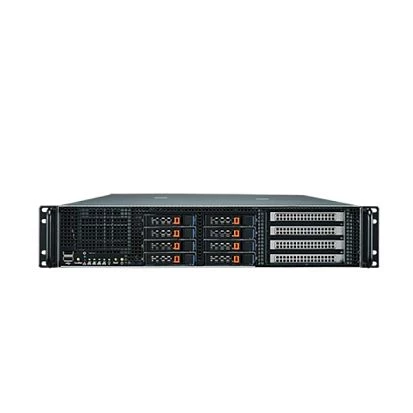

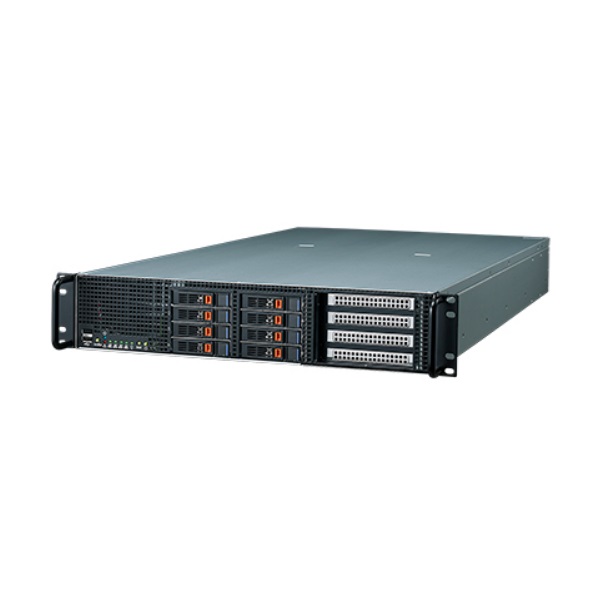

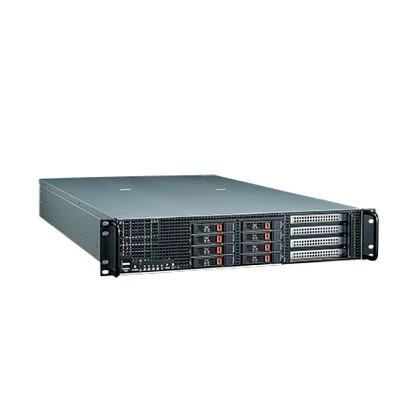

2U Rackmount Processor-based Platform, 2xsockets Intel LGA2011 with support Xeon E5-2600 v1/v2, up to 1028 Gb DDR4 1600/1866/2133 MHz ECC-REG DIMM, 8x 2.5" Hot-Swap HDD, 4x GbE LAN, 4xUSB, 4xPCIe x16, 1x PCIe x8, redundant power supply 1400 W
AGS-920I-R14A1E
Advantech
SKU: 07975600
Price on request
Available on order
Available on order
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
19" Rackmount
Height
2 U
CPU
Socket
LGA2011
CPU Support Type
Xeon
Number of CPU
2
Chipset
Chipset
Intel C602J
Memory
Form-factor
DDR3
Socket Type
8xDIMM
ECC
Yes
Maximum Memory
128 GB
Graphic
Graphic Controller
AST2300
Graphic Memory Size
0.06 GB
Interfaces
VGA
Ethernet
Controller Type
Intel 82579LM 10/100/1000Mbps, Intel i210-AT
Total Ethernet
4
10/100/1000 Mbit/s
4
Interfaces
USB Total
4
USB 2.0
4
Storage Cage
2.5" Cage External
8
Extension Slots
PCI Express x16
4
PCI Express x8
1
LED / Controls
LED
1xHDD LED, Power LED, FAULT LED, LAN LED
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB15 VGA, RJ45 Ethernet, 4xUSB
System Power Input
Input Voltage AC
100..240 V
Power Supply
Type of Power Supply
Redundant
Dimensions and weight
Width
430 mm
Height
88 mm
Depth
770 mm
Operating Conditions
Operating Temperature
0..40 °C
Vibration
0.5 Grms
Shock
10 G
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
5.4 kg
Gross Weight
6 kg
Documentation
