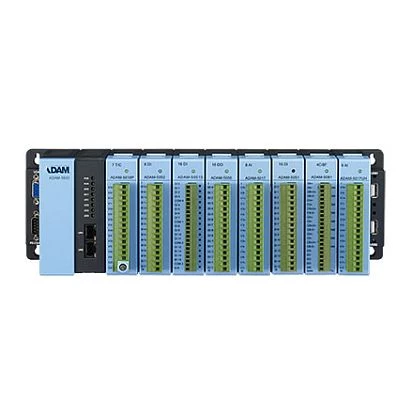

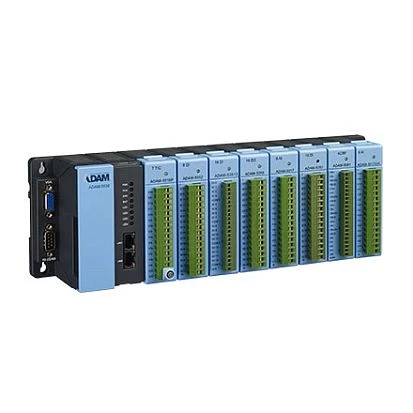

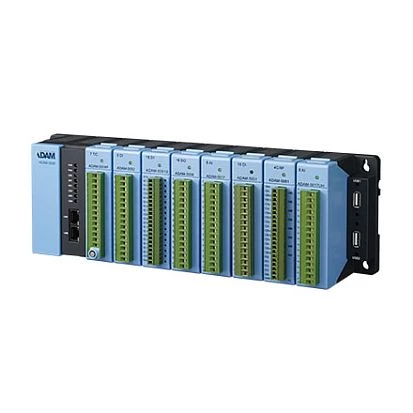

Edge Intelligent DAQ Controller, MicroSD slot, 4xCOM, 2xLAN, 8 Expansion slots, Support Modbus/RTU, Modbus/TCP Master and Slave
ADAM-5630E-AE
Advantech
SKU: 08355000
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
ARM Cortex A8 TI AM335X
Max CPU frequency
0.6 GHz
Memory
Default on Board Memory
0.5 GB
Installed drive
Flash Memory Capacity
512 MB
Drive interfaces
MicroSD
1
Expansion Module
Quantity of Slots
8
Supported Module
ADAM-5000 series
Software
Operating System Installed
Linux OS
Programming Method
C/C++, Python
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-485
2
RS-232/485
2
USB Total
2
Additional Functions
Watchdog timer type
Hardware
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus TCP client
Graphic
Interfaces
VGA
Dimensions and weight
Width
355 mm
Depth
75 mm
Height
100 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-40..70 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
2.5 kg
Gross Weight
3 kg
