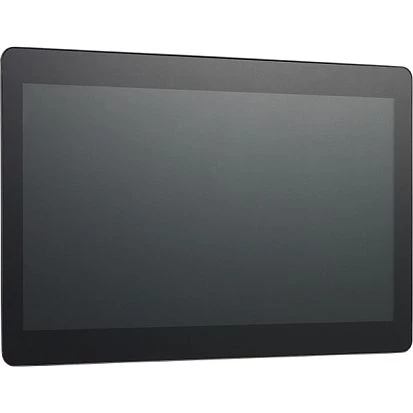

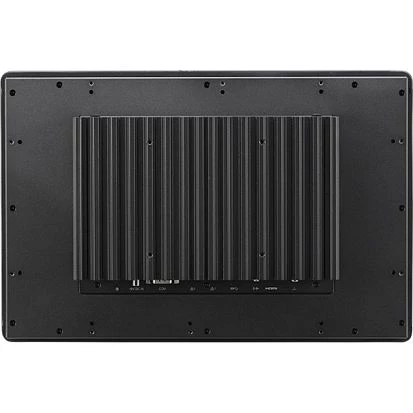

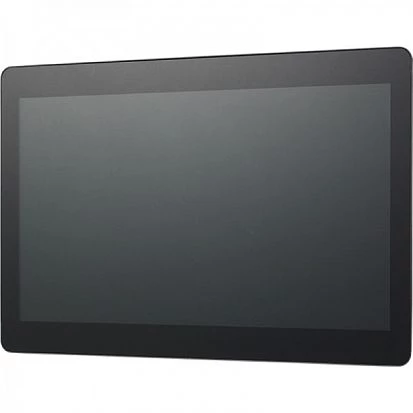

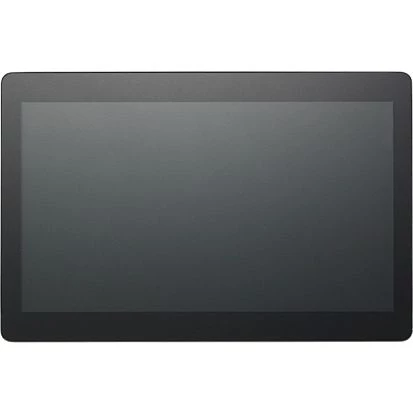

15.6" WXGA LED Fanless Panel PC, 1280x800, 500cd/m2, PCAP TouchScreen, Intel Celeron J3455, 1xSO-DIMM DDR3L, HDMI, 2xRJ-45, COM, 2xUSB, M.2 2242 SSD, Mini-PCIe, Audio(BY REQUEST), 19V DC-In
XPPC-16-100
NEXCOM
SKU: 09132300
End-of-life product
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15.6 "
Maximum resolution
1366x768 Dots
Aspect Ratio
16:9
Brightness
500 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Celeron J3455
Socket
CPU onboard
Max CPU frequency
2.3 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
LED / Controls
LED
1xOn/Off LED
Controls
On/Off
Connectors
Connectors

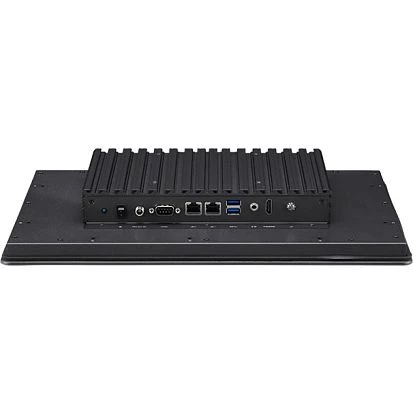

DB9, HDMI, 2xRJ45 Ethernet, 2xUSB, Line Out, DC Input
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
90 W
Software
Operating System Compatibility
Windows 10, Linux kernel 4.x
Dimensions and weight
Width
382.6 mm
Height
251.8 mm
Depth
51.66 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
- IEC 68 2-64 - 2Grms @ sine, 5~500Hz, 1hr/axis - 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating)
Shock
- IEC 68 2-27 - 50g peak acceleration (11 msec. duration)
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3 kg
Gross Weight
4.7 kg
