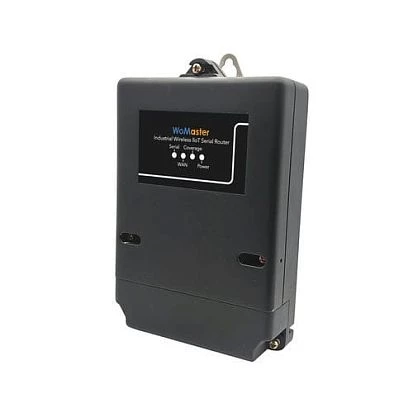

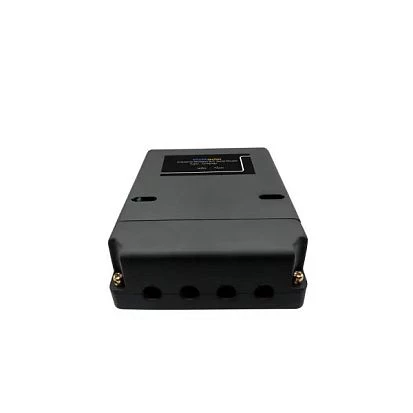

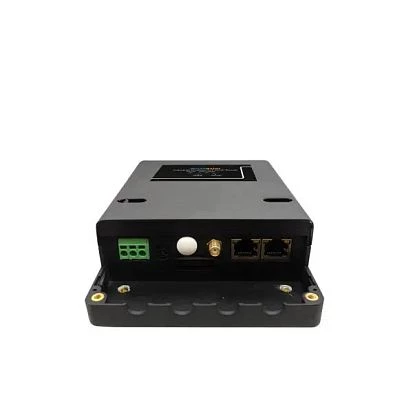

Outdoor Rugged IIoT Serial Router IP51, 1-Port 10/100Base-TX, 1xCOM, 1xSIM, 1xSMA, 48..110VDC, Operating Temperature -25..70 C
WR210A-LTE
WoMaster
SKU: 57824100
Price on request
Available on order
Available on order
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
Antenna characteristics
Cellular interfaces
4G
Extension Slots
SIM Card slots
Yes, 1, Mini-SIM
Supported Protocols
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, Telnet, DHCP, SNMP, NTP, SNTP, TFTP, ARP, Proxy ARP
Security Protocols
HTTPS, SSH, RADIUS, TACACS+
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X)
LED / Controls
LED
Power LED, WWAN LED
Connectors
Connectors
1xSMA, SMA Female
System Power Input
Input Voltage DC
48..110 V
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
-25..70 °C
Construction
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP51
Dimensions and weight
Width
116 mm
Depth
173.9 mm
Height
50 mm
Standards and Certifications
Certifications
CE
Safety
IEC 62368-1
Dimensions
Net Weight
0.35 kg
Gross Weight
0.5 kg
Documentation
