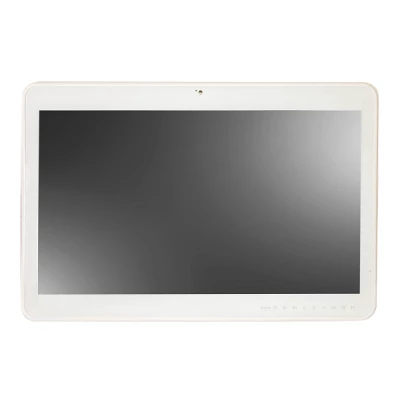

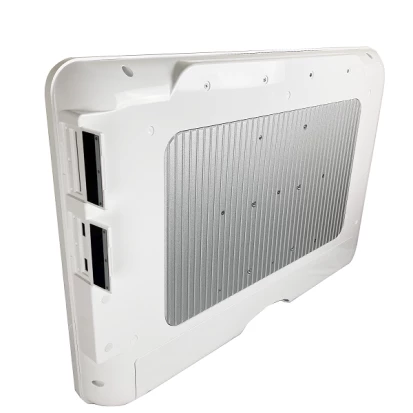

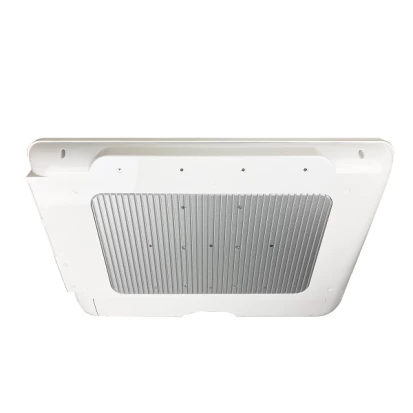

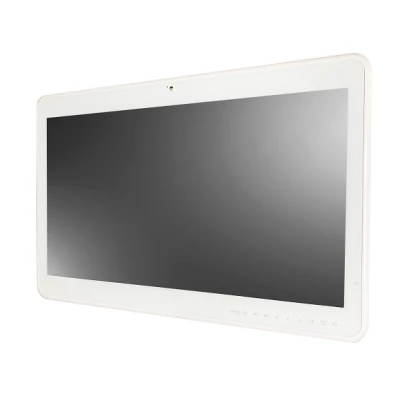

23,8" TFT LCD Medical Panel PC,PCAP Touch, Intel Core i7-1255U, 8GB DDR5 RAM, 128GB M.2 SSD, DP, 2xHDMI, 2xLAN,2xCOM, 4xUSB, 1x2.5" Drive Bay, 1xM.2, 1xPCIe x4, 100-240V, 0..40C
WMP-24P-IP0P-i5-IP54
Wincomm
SKU: 11184000
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP54
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
23.8 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
3000~1
Input Interface
DisplayPort, HDMI
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Raptor Lake
Processor Installed
Intel Core i5-1235U
Max CPU frequency
4.4 GHz
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Intel Iris Xe Graphics
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Drive interfaces
SATA 3
1
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
2
PCI Express x4
1
M.2
1
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors

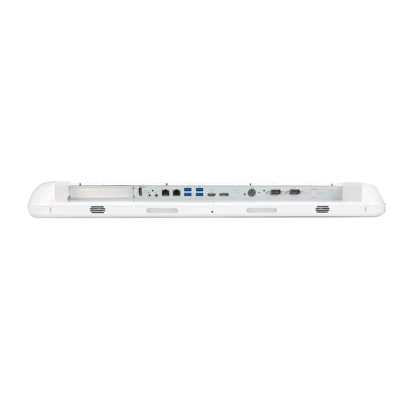

2xDB9, 2xHDMI, 2xRJ45, 4xUSB, Mic In, Line Out, Display Port
System Power Input
Input Voltage DC
14..24 V
Input Voltage AC
100..240 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows IoT Enterprise 10, Windows 10, Windows 11
Dimensions and weight
Width
594 mm
Height
397 mm
Depth
56 mm
Operating Conditions
Operating Temperature
0..40 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class B, VCCI
Medicine
EN 60601-1
Safety
UL, cUL
Dimensions
Net Weight
7 kg
Gross Weight
9 kg
