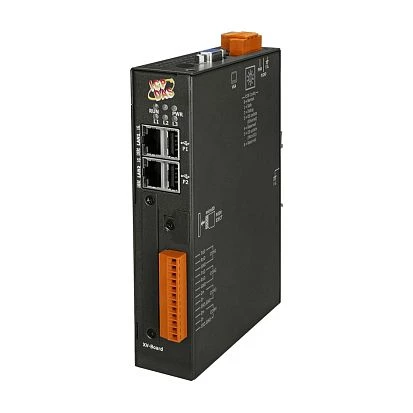

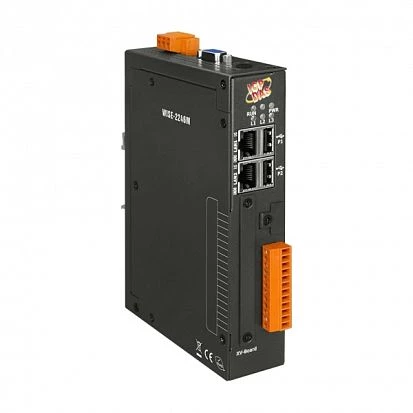

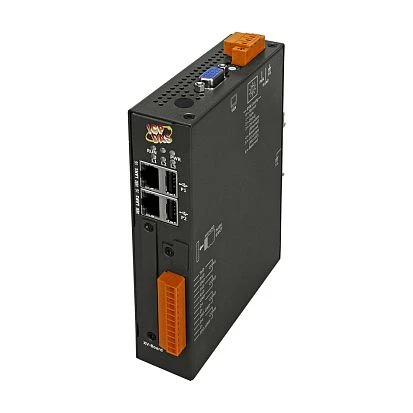

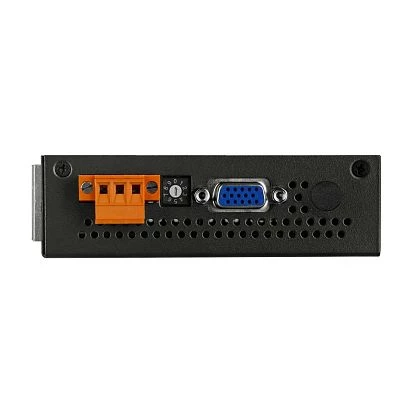

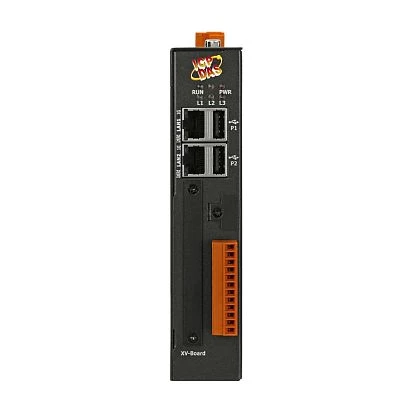

WISE-2246M
ICP DAS
SKU: 08489900
IIoT Web Controller with 32-bit ARM CPU, 4GB MicroSD, 2xGbE LAN, 4xCOM, 12...48VDC-in, -25...+75C
Price on request
Available on order
Available on order
CPU
Processor Installed
32-bit RISC
Drive interfaces
SD Slots
1
Expansion Module
Quantity of Slots
1
Supported Module
XV - board
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
1
RS-485
2
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus RTU slave, MQTT client
Dimensions and weight
Width
33 mm
Depth
129 mm
Height
160 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
0.28 kg
