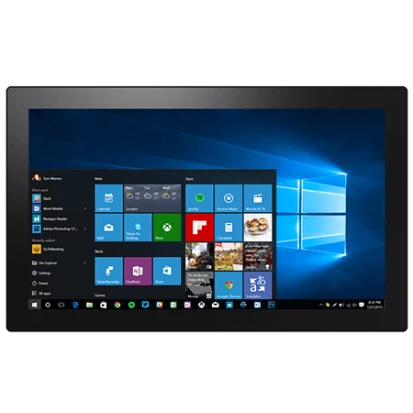

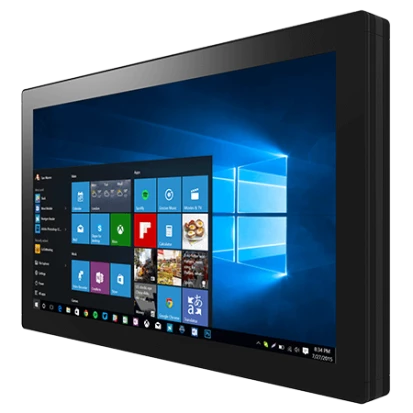

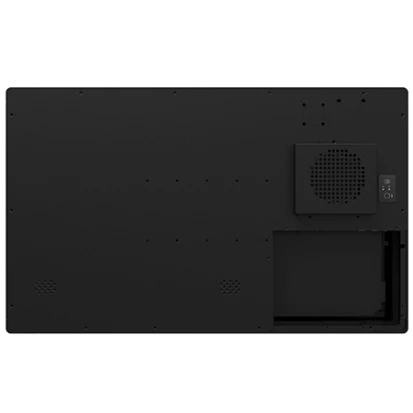

27" Standalone Panel PC, IP65 Front, 1920x1080, 300cd/m2, PCAP Touc, Intel Core i5-12500TE CPU, R680E Chipset, 8GB DDR5 RAM, 128GB NVME SSD, HDMI/DP, 2x2.5GbE LAN, 8xUSB 3.2, 2xCOM, 2xSATA 3, Audio, 1xM.2 2280 Key-M, 1xM.2 2230 Key-E, 12VDC-in w/ PSU
W27IAD7T-PCA1
Winmate
SKU: 10657800
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall VESA 100, VESA 200x100
Protection Level of Front Side (Panel)
IP65
Type
Fan
Display
Display Type
LCD TFT
Diagonal
27 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
300 Cd/m2
Contrast Ratio
3000~1
Input Interface
DisplayPort, HDMI
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i5-12500TE
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Core i7, Core i9
Max CPU frequency
4.3 GHz
Chipset
Chipset
Intel R680E
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
2,5 Gbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
8
USB 2.0
4
USB v3.x
4
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M, 2230 E
LED / Controls
Controls
On/Off, 1xReset, CMOS Reset
Connectors
Connectors
DB9, 2xRJ45 Ethernet, 8xUSB, Mic In, Line Out, DC Input, Display Port
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
210 W
AC input voltage
100-220 V
Software
Operating System Compatibility
Ubuntu, Windows 11
Dimensions and weight
Width
675.4 mm
Height
413.4 mm
Depth
64.5 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
10.2 kg
Gross Weight
11.5 kg
