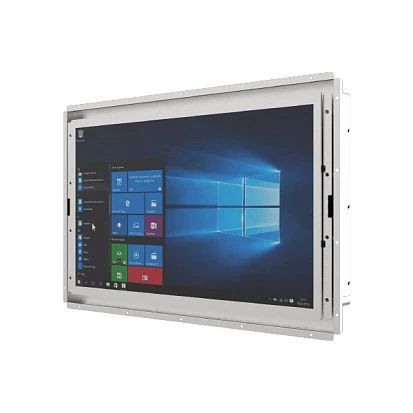

18.5" Fanless Panel PC, 1366x768, 450 cd/m2, Intel 11th Gen Core i5 CPU, Up to 64GB DDR4 RAM, Up to 4TB M.2 SSD, 1xDP, 2xCOM, 4xUSB 3.2, 2xGbE LAN, Audio, 1xM.2 2242/2280 Key-M, 1xM.2 2230 Key-E, TPM 2.0, 12VDC-in with PSU, 0..50C
W18IT7T-OFA2
Winmate
SKU: 57666500
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis, Open Frame
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
18.5 "
Brightness
450 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1135G7
Socket
FCBGA 1449
Chipset
Chipset
Intel SoC
Memory
ECC
No
Default on Board Memory
4 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel Iris Xe Graphics
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
Extension Slots
Total
2
M.2
2
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, Display Port
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Ubuntu, Windows IoT Enterprise 10, Windows 11
Dimensions and weight
Width
476 mm
Height
299 mm
Depth
63 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
7.5 kg
Gross Weight
8.5 kg
