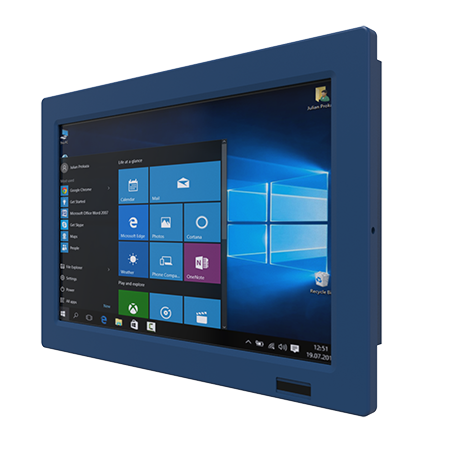

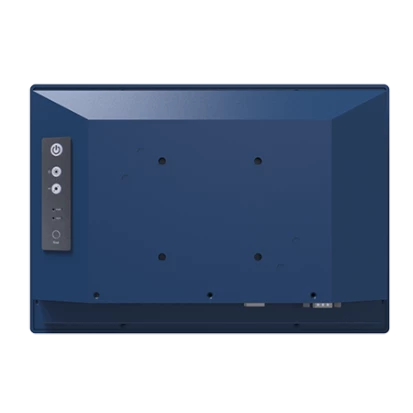

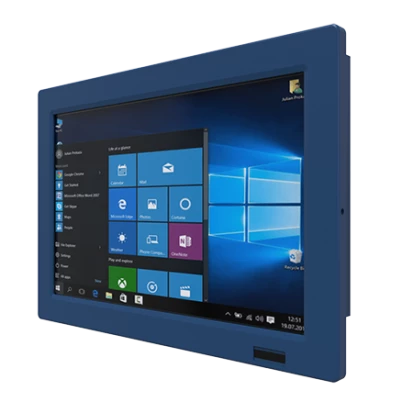

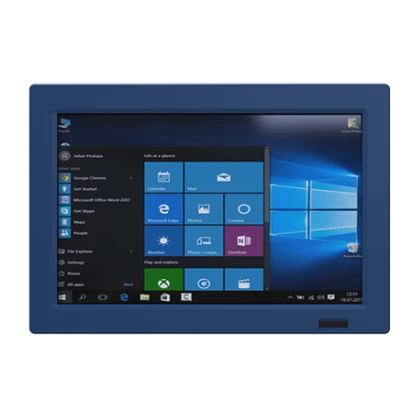

12.1" Vehicle Panel PC, G-WIN VM Series, EN50155 Compliant, IP65 Front, 1280x800, 400cd/m2 (HB Opt.), Intel Celeron N6211 CPU, 4GB DDR4 RAM, 128GB SATA SSD, HDMI Opt., 2x2.5GbE LAN, 2xCOM, 2xUSB 3.2, 1xM.2 2230 Key-E, 1xM.2 2242 Key-B, 10-60VDC-in
W12IE3S-VMM9
Winmate
SKU: 10752900
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
12.1 "
Maximum resolution
1280x800 Dots
Brightness
400 Cd/m2
Contrast Ratio
1000~1
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Celeron N6211
Socket
CPU onboard
Max CPU frequency
3 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
SATA
1st Storage Capacity
128 GB
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2242 M, 2230 E
LED / Controls
LED
Power LED
Controls
On/Off, KeyPad
Connectors
Connectors
2xDB9, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
10..60 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows IoT Enterprise 10, Windows 11
Dimensions and weight
Width
310 mm
Height
215 mm
Depth
52.7 mm
Operating Conditions
Operating Temperature
-10..55 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration
Rolling Stock
EN 50155
Dimensions
Net Weight
2.8 kg
Gross Weight
3.5 kg
