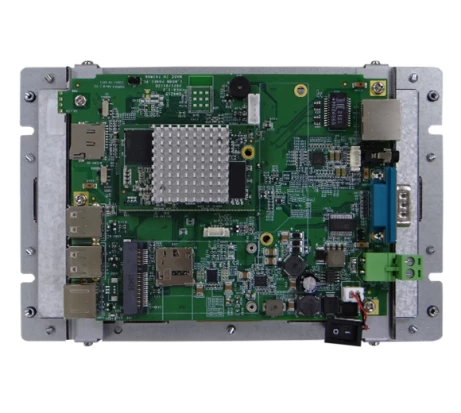

Open Frame Panel PC with ARM Quad Core CPU, 2 GB DDR4 RAM, 16 GB eMMC, 2xUSB, 1xCOM, 1xGbE

Featuring an extremely compact, fanless design, a Quad Core ARM CPU, versatile I/O, and a 7'' touchscreen, the VOX-070-TS-N8M open frame panel PC offers a universal platform for experimental and productive environments. It provides a cost-effective, reliable solution for local H2M interfaces and IoT terminals.

For high performance and efficiency, the VOX-070-TS-N8M industrial panel PC uses an NXP i.MX 8M Quad Core CPU running at 1.60 GHz on the energy-efficient ARM Cortex-A53 architecture. It comes with 2 GB DDR4 onboard RAM and is equipped with 16 GB eMMC flash memory as the primary drive. Additionally, a microSD card slot allows for flexible expansion of user data storage and external storage of information such as log files, multimedia content, or extensive development tools.

With two USB 2.0 Type-A ports and one serial COM port (RS232/485), the VOX-070-TS-N8M natively supports the two most important industrial standards for communication between embedded PCs and peripheral devices. I/O customization is also possible via a Mini PCI Express extension slot, which allows, for example, optional integration of WLAN 802.11 or WWAN with 4G/5G in addition to the built-in RJ45 Gigabit Ethernet LAN. Other interfaces on the VOX-070-TS-N8M include a 3.5 mm line-out, a micro SIM card slot, and a port for easy programming and updating of the fanless panel PC.

The VOX-070-TS-N8M features a 7'' resistive touchscreen with a resolution of 1024 x 600 pixels and a 17:10 aspect ratio, offering detailed display and convenient operation in a compact format. In addition to the standard version with an operating temperature range of 0°C to +60°C, a variant for harsh environments is also available—suitable for outdoor areas or in-vehicle PC use. The VOX-070-TS-N8M is designed for applications such as H2M interfaces in mechanical and plant engineering, Industry 4.0 environments, and serves equally well in productive environments and as an experimental development platform.

VOX-070-TS-N8M-N5GM
