VMC-3020-2A0
NEXCOM
SKU: 56261100

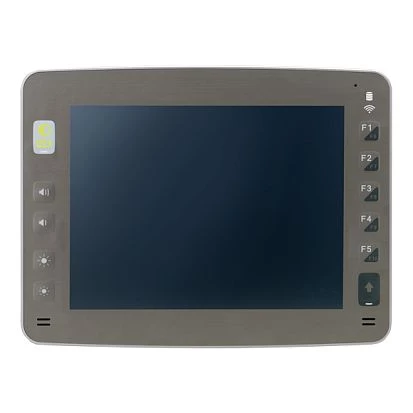

10.4" rugged vehicle mount computer with Touch Screen with 1200 nits and Intel Atom x5-E3930 1.8GHz, 4GB DDR3L, CFast, 2.5" SATA SSD Bay, 2xMini-PCIe, 1xM.2, 9V~60V DC
Price on request
Available
Available
VMC-3020-2A0
VMC-3200 Rugged Vehicle Panel PC has 1200 nits, 10.4'' touch screen, IP65, MIL-STD-810G, Intel Atom x5-E3930, 4GB DDR3 RAM With a far superior brightness of 1200 cd/m² and a resolution of 1024x768 pixels on a 10.4'' resistive touch screen, the VMC-3200 is a vehicle panel PC with excellent, easy-to-read display сonditions. The VMC-3200 is a powerful representative of a new generation of Vehicle Mount Computer for mobile performance with very high reliability and a fanless rugged design. As a main processor, the lightweight Panel PC uses a high-performance Intel Atom x5-E3930 with dual core at 1.8 GHz clock frequency and integrated Intel HD Graphics GPU. Despite its small format as a 10.4'' Embedded Car PC, the VMC-3200 has a 2.5'' SSD and a socket for CF memory cards to provide multiple high-capacity storage solutions for complex data. The chassis and the front bezel are shielded to the environment according to IP65 and supplement the comprehensive protection according to MIL-STD-810G against vibrations and shocks with an acceleration up to 75g. The VMC-3200 can be used universally for communication, multimedia, infotainment and technical monitoring, thanks to the extensive configuration with interfaces for communication and data acquisition such as GPS, RFID, WLAN 802.11, 2xCOM RS232, USB 2.0, GbE LAN, 4xGPIO and 2xMini Card Expansion Slot. The Vehicle PC is suitable for installation in vehicles of all kinds including bus, train, truck, car or air and sea shipping.
VMC-3020-2A0
VMC-3200 Rugged Vehicle Panel PC has 1200 nits, 10.4'' touch screen, IP65, MIL-STD-810G, Intel Atom x5-E3930, 4GB DDR3 RAM With a far superior brightness of 1200 cd/m² and a resolution of 1024x768 pixels on a 10.4'' resistive touch screen, the VMC-3200 is a vehicle panel PC with excellent, easy-to-read display сonditions. The VMC-3200 is a powerful representative of a new generation of Vehicle Mount Computer for mobile performance with very high reliability and a fanless rugged design. As a main processor, the lightweight Panel PC uses a high-performance Intel Atom x5-E3930 with dual core at 1.8 GHz clock frequency and integrated Intel HD Graphics GPU. Despite its small format as a 10.4'' Embedded Car PC, the VMC-3200 has a 2.5'' SSD and a socket for CF memory cards to provide multiple high-capacity storage solutions for complex data. The chassis and the front bezel are shielded to the environment according to IP65 and supplement the comprehensive protection according to MIL-STD-810G against vibrations and shocks with an acceleration up to 75g. The VMC-3200 can be used universally for communication, multimedia, infotainment and technical monitoring, thanks to the extensive configuration with interfaces for communication and data acquisition such as GPS, RFID, WLAN 802.11, 2xCOM RS232, USB 2.0, GbE LAN, 4xGPIO and 2xMini Card Expansion Slot. The Vehicle PC is suitable for installation in vehicles of all kinds including bus, train, truck, car or air and sea shipping.
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Brightness
1200 Cd/m2
Contrast Ratio
500~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Atom x5-E3930
Max CPU frequency
1.8 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
2
USB Total
3
USB 2.0
3
Drive interfaces
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
LED / Controls
LED
Power LED, WLAN LED, SSD LED
Controls
On/Off, Control Buttons, Function Keys
Connectors
Connectors
2xDB9, RJ45, 2xUSB, Mic In, Line Out, DC Input, DB15 CAN Bus, CFast slot
System Power Input
Input Voltage DC
9..60 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
289.98 mm
Height
229.97 mm
Depth
77.95 mm
Operating Conditions
Operating Temperature
-30..60 °C
Standards and Certifications
Certifications
CE, FCC Class B
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Automotive
e13 Mark
Dimensions
Net Weight
3 kg
Gross Weight
3.7 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Brightness
1200 Cd/m2
Contrast Ratio
500~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Atom x5-E3930
Max CPU frequency
1.8 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
2
USB Total
3
USB 2.0
3
Drive interfaces
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
LED / Controls
LED
Power LED, WLAN LED, SSD LED
Controls
On/Off, Control Buttons, Function Keys
Connectors
Connectors
2xDB9, RJ45, 2xUSB, Mic In, Line Out, DC Input, DB15 CAN Bus, CFast slot
System Power Input
Input Voltage DC
9..60 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
289.98 mm
Height
229.97 mm
Depth
77.95 mm
Operating Conditions
Operating Temperature
-30..60 °C
Standards and Certifications
Certifications
CE, FCC Class B
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Automotive
e13 Mark
Dimensions
Net Weight
3 kg
Gross Weight
3.7 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Brightness
1200 Cd/m2
Contrast Ratio
500~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Atom x5-E3930
Max CPU frequency
1.8 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
2
USB Total
3
USB 2.0
3
Drive interfaces
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
LED / Controls
LED
Power LED, WLAN LED, SSD LED
Controls
On/Off, Control Buttons, Function Keys
Connectors
Connectors
2xDB9, RJ45, 2xUSB, Mic In, Line Out, DC Input, DB15 CAN Bus, CFast slot
System Power Input
Input Voltage DC
9..60 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
289.98 mm
Height
229.97 mm
Depth
77.95 mm
Operating Conditions
Operating Temperature
-30..60 °C
Standards and Certifications
Certifications
CE, FCC Class B
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Automotive
e13 Mark
Dimensions
Net Weight
3 kg
Gross Weight
3.7 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Brightness
1200 Cd/m2
Contrast Ratio
500~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Atom x5-E3930
Max CPU frequency
1.8 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
2
USB Total
3
USB 2.0
3
Drive interfaces
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
LED / Controls
LED
Power LED, WLAN LED, SSD LED
Controls
On/Off, Control Buttons, Function Keys
Connectors
Connectors
2xDB9, RJ45, 2xUSB, Mic In, Line Out, DC Input, DB15 CAN Bus, CFast slot
System Power Input
Input Voltage DC
9..60 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
289.98 mm
Height
229.97 mm
Depth
77.95 mm
Operating Conditions
Operating Temperature
-30..60 °C
Standards and Certifications
Certifications
CE, FCC Class B
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Automotive
e13 Mark
Dimensions
Net Weight
3 kg
Gross Weight
3.7 kg
