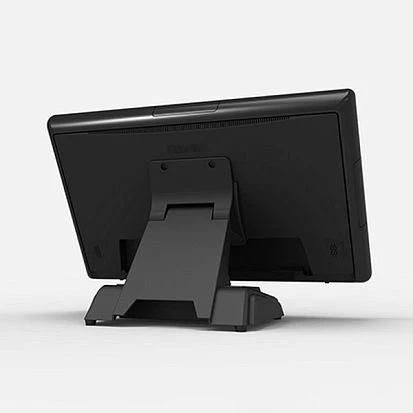

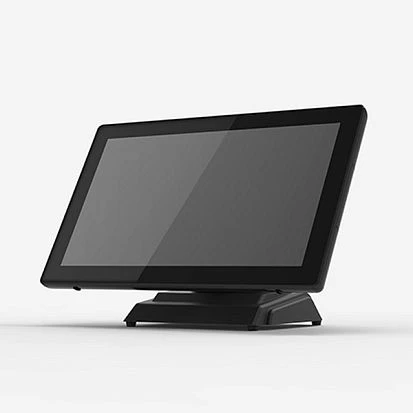

18.5" TFT LCD Panel PC, Resistive Touch Screen, Intel Celeron J1900 2.0GHz, 2GB DDR3L, 64GB SSD, VGA, 2xCOM, 4xUSB, 2xGbE LAN, 1xRJ11, Audio, 1xMini PCIe/mSATA, power adapter 12V AC DC 84W
UTC-318PDR-ATB0E
Advantech
SKU: 07884400
Price on request
Available on order
Available on order
Construction
Construction Chassis
ABS plastic chassis
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65, NEMA 4
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
18.5 "
Maximum resolution
1366x768 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Default on Board Memory
2 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
3
USB v3.x
1
Audio
Audio Controller
Intel HD Audio
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
Drive Type
SSD
1st Storage Capacity
64 GB
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, DB15 VGA, RJ11, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Consumption
70 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
84 W
Software
Operating System Compatibility
Android, Windows Embedded Standard 7, Windows Embedded Standard 8, Linux OS, Windows 7 SP1, POSReady, Windows Embedded 8.1 Industry
Dimensions and weight
Width
475 mm
Height
295 mm
Depth
43.5 mm
Operating Conditions
Operating Temperature
0..40 °C
Vibration
0.5G
Shock
10 G peak acceleration (11 msec. duration)
Standards and Certifications
Certifications
CE, FCC
Safety
CCC, CB, UL, BSMI
Dimensions
Net Weight
5 kg
Gross Weight
7 kg
