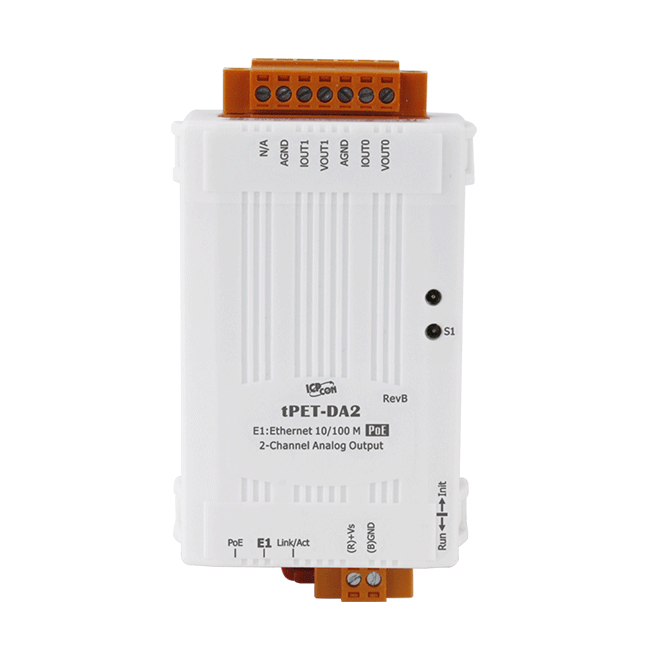

tPET-DA2
ICP DAS
SKU: 11058600
Tiny PoE Ethernet Module with Isolated 2-ch AO 0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA, 12-48VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave, MQTT
Analog Output
Channels of analog input
2
DAC Bit Rate
12 Bit
Voltage range
0...10 V
Current range
0...20 mA, 4...20 mA
System Power Input
Input Voltage DC
12..48 V
Power over Ethernet (PoE)
PoE
Dimensions and weight
Width
52 mm
Depth
27 mm
Height
96 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Gross Weight
0.5 kg
