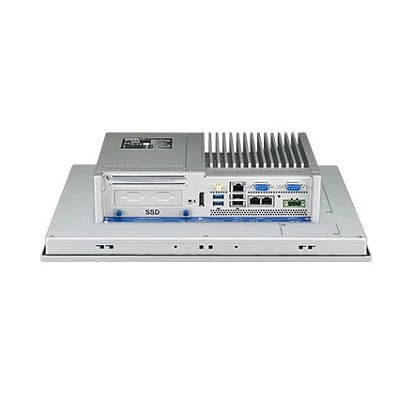

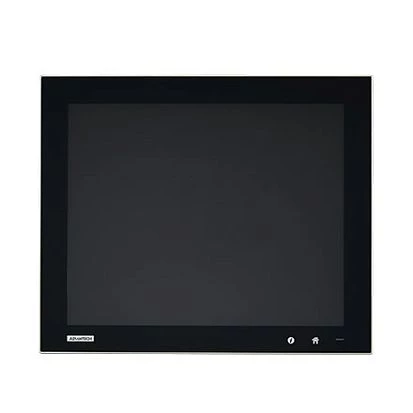

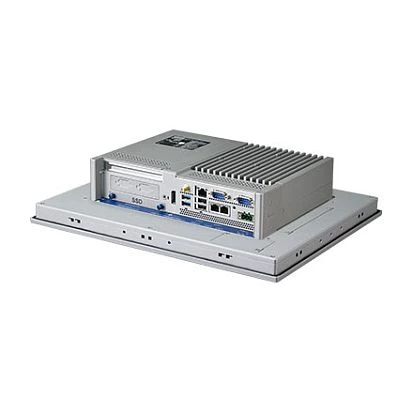

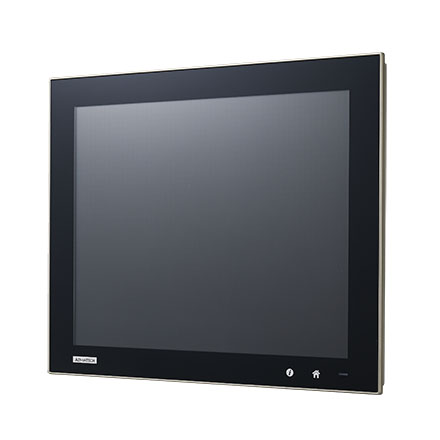

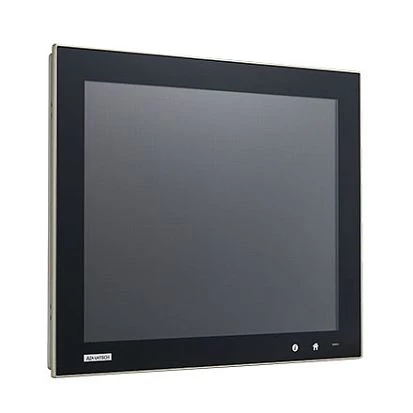

17" SXGA modular Panel PC, Intel Core i3-6100U 2.30GHz, 8GB RAM, DP, projected capasitive touch w/multitouch, 3xGB LAN, 2xCOM, 2xUSB 3.0, 2xUSB 2.0, M.2, 1x2.5" SATA SSD Bay, PCIe, 2xMiniPCIe (1x iDoor), TPM 2.0, Audio, IP66 Front
TPC-5172T-633AE
Advantech
SKU: 07489300
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
17 "
Maximum resolution
1280x1024 Dots
Aspect Ratio
4:3
Brightness
350 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Core i3-6100U
Socket
CPU onboard
Max CPU frequency
2.3 GHz
Memory
Form-factor
DDR4
Default on Board Memory
8 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210 10/100/1000 Mbps, Intel i219-IT
Total Ethernet
3
10/100/1000 Mbit/s
3
Wi-Fi
Wi-Fi Standard
802.11b/g/n
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Audio
Audio Controller
Intel HD Audio
Drive interfaces
M.2
1
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Extension Slots
Total
3
Mini-PCIe/Mini Card
3
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xOn/Off LED
Controls
Control Buttons
Connectors
Connectors
2xDB9, 3xRJ45 Ethernet, 4xUSB, Line Out, DC Input, Display Port
System Power Input
Input Voltage DC
19..29 V
Power Consumption
42 W
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows 8.1, Windows IoT Enterprise 10
Dimensions and weight
Width
410.4 mm
Height
343.4 mm
Depth
87.5 mm
Operating Conditions
Operating Temperature
0..55 °C
Vibration
3 Grms (5 ~ 500 Hz)
Standards and Certifications
Certifications
CE, FCC Class A
Safety
CCC, UL, BSMI
Dimensions
Net Weight
7 kg
Gross Weight
10 kg
