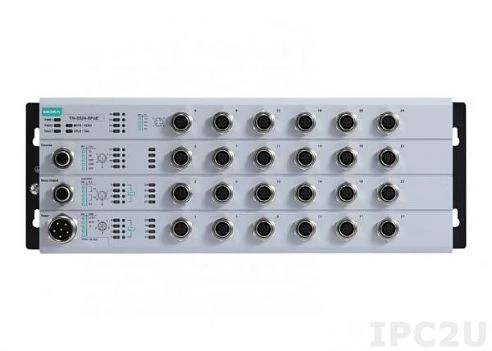

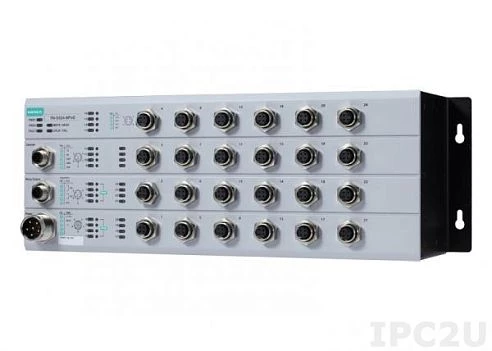

TN-5524-8PoE-P24-T
MOXA
SKU: 06077500
Managed Ethernet switch 24 FE M12 with 8 PoE ports L2, 24 VDC, -40 to 75
End-of-life product
Ethernet
Total Ethernet
24
10/100 Mbit/s
16
Type 10/100 Mbit/s
M12
PoE 10/100 Mbit/s
8
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported Protocols
Industrial Protocols
EtherNet/IP, Modbus TCP
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, SNTP, GVRP, RMON, BootP, IEEE 1588 PTP V2 (software based), IGMPv1/v2, DHCP Option 66/67/82, NTP Server/Client, SNMP Inform, GMRP, RARP
Security Protocols
HTTPS, SSH, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ad for Port Trunk with LACP, EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface
System Power Input
Input Voltage DC
16..30 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel
Protection Level of Chassis
IP40
Dimensions and weight
Width
390 mm
Depth
122.3 mm
Height
132 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
EMI
EN 55022, FCC Part 15
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Rolling Stock
EN 50121-4, EN 50155
Safety
UL 508
Freefall
IEC 60068-2-32
Vibration And Shock
EN 61373 Category 1 Class B
Dimensions
Net Weight
0.5 kg
Gross Weight
3.14 kg
