tGW-718i-T

tGW-718i-T

SKU: 09244700

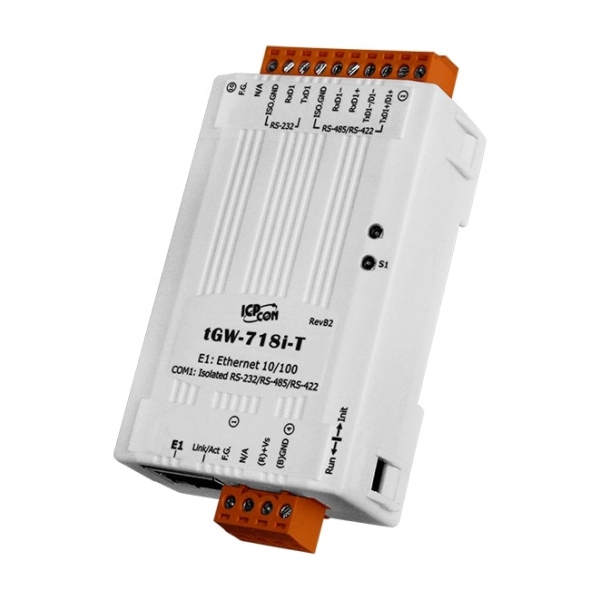

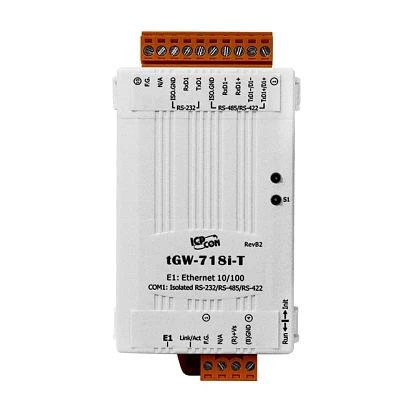

Tiny Modbus/TCP to RTU/ASCII Gateway, 1 Isolated RS-232/422/485 Port (10-Pin Terminal Block, RoHS), 12-48VDC

Price on request

Ethernet

Total Ethernet

1

10/100 Mbit/s

1

Interfaces

COM Total

1

RS-232/422/485

1

Isolation of COM Ports

3 kV (RS-232/422/485)

Supported Protocols

Industrial Protocols

Modbus TCP server, Modbus TCP client, Modbus RTU master, Modbus RTU slave, Modbus ASCII master, Modbus ASCII slave

System Power Input

Input Voltage DC

12..48 V

Operating Conditions

Operating Temperature

-25..75 °C

Construction

Construction Chassis

Plastic Chassis

Mounting Configuration

DIN-Rail mount

Dimensions and weight

Width

52 mm

Depth

27 mm

Height

90 mm

Connectors

Connectors

Screw Terminal

Dimensions

Net Weight

0.1 kg

Gross Weight

0.1 kg

Documentation

Datasheet tGW-700 User Manual tGW-700 Quick start tGW-700

Software

eSearch Utility

ICP DAS tGW-734 Tiny Modbus/TCP to RTU/ASCII gateway with PoE, 2xRS-232, 1xRS-485

ICP DAS tGW-735i Tiny Modbus/TCP to RTU/ASCII gateway with PoE and 3 Isolated RS-485

ICP DAS tGW-725i Tiny Modbus/TCP to RTU/ASCII Gateway with PoE and 2 Isolated RS-485 Ports (RoHS)

ICP DAS tGW-712i Tiny Modbus/TCP to RTU/ASCII gateway with PoE and Isolated 1 RS-232, 12-48VDC-in

ICP DAS tGW-724 Tiny Modbus/TCP to RTU/ASCII gateway with PoE and 1xRS-232, 1xRS-485
