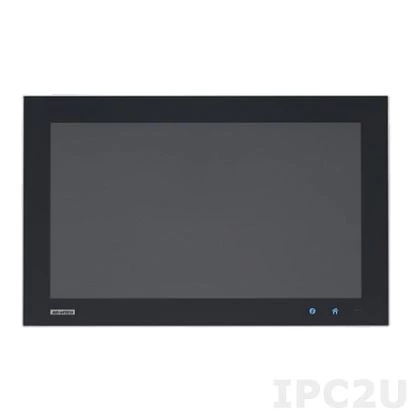

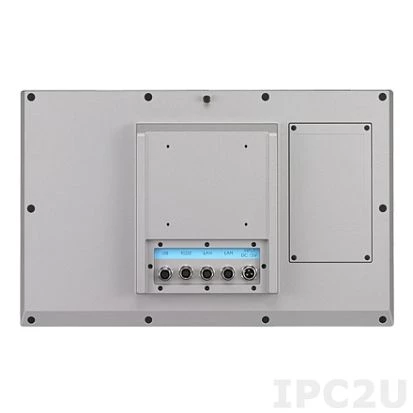

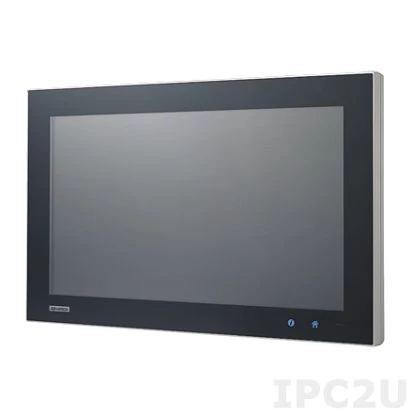

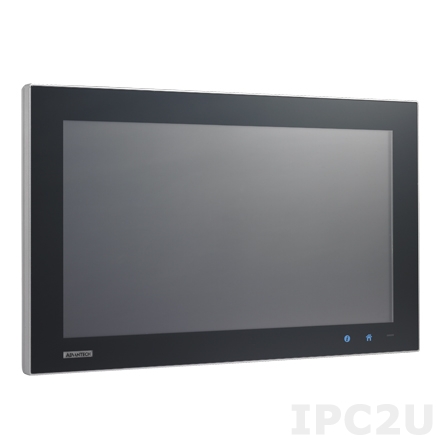

Fanless Panel PC WXGA 18.5" TFT LCD LED, projected capacitive touch, Intel Core i3-4010U 1.70GHz CPU, 4GB DDR3, 1x2.5" SATA HDD, 5xM12 (1xUSB, 1xRS-232, 2xLAN, DC input), power supply 24V DC
SPC-1881WP-433AE
Advantech
SKU: 07683800
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall VESA 100, Arm
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
18.5 "
Maximum resolution
1366x768 Dots
Aspect Ratio
16:9
Brightness
300 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Core i3-4010U
Max CPU frequency
1.7 GHz
Chipset
Chipset
Intel Haswell SoC
Memory
Form-factor
DDR3
Default on Board Memory
4 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232
1
USB Total
1
USB 2.0
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
M12
System Power Input
Input Voltage DC
24..24 V
Power Consumption
35 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows IoT Enterprise 10, Windows Embedded 8.1 Industry
Dimensions and weight
Width
488 mm
Height
309 mm
Depth
65 mm
Operating Conditions
Operating Temperature
0..55 °C
Vibration
With HDD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration)
Standards and Certifications
Certifications
CE, FCC Class A
Safety
CCC, UL, BSMI
Dimensions
Net Weight
8 kg
Gross Weight
8.5 kg
