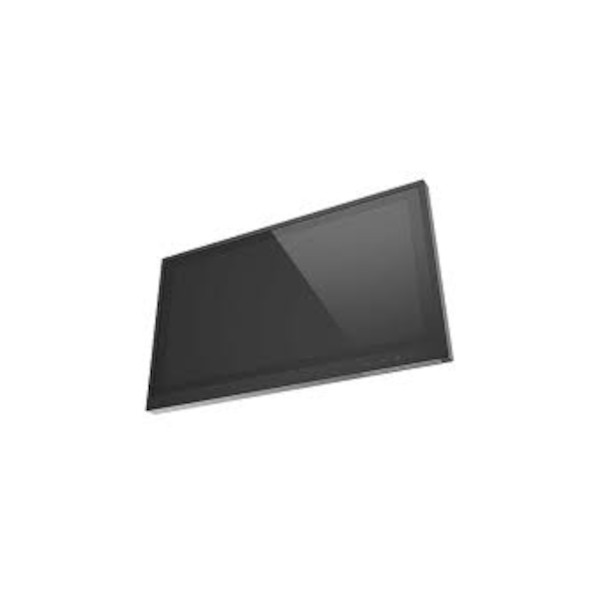

SID-15W9

15.6" Semi Industrial Ultra Slim Panel PC, FHD, 220cd/m2, Projective Capacitive Multi-Touch, Intel Atom Z3735F 1.33GHz CPU, 2GB DDR3L, 32GB eMMC, HDMI, 1x100 Mbps,2xUSB, 1xCOM, WiFi802.11b/g/n, 19V Power adapter

call * - With the selected configuration ()
pcs.
To order
Construction Chassis:
Metal Chassis
Display Type:
LCD TFT
Diagonal:
15.6 "
Maximum Resolution:
1920 x 1080 Dots
Touch Screen Type:
Capacitive
Processor Installed:
Intel Atom Z3735F
Frequency:
1.33 GHz
Memory Type:
DDR3L
Specification
Vendor
Name:
Avalue
Construction
Construction Chassis:
Metal Chassis
Mounting Configuration:
Desktop, Wall, Wall VESA 75
Display
Display Type:
LCD TFT
Diagonal:
15.6 "
Maximum Resolution:
1920 x 1080 Dots
Brightness:
220 Cd/m2
Touch Screen
Touch Screen Type:
Capacitive
CPU
Processor Installed:
Intel Atom Z3735F
Frequency:
1.33 GHz
Memory
Memory Type:
DDR3L
Default on Board Memory:
2 GB
Storage
eMMC support:
yes
eMMC memory size:
32 GB
Interfaces
COM Total:
1
RS-232:
1
USB Total:
2
USB 2.0:
2
Network Adapter
Total Ethernet:
1
10/100 Mbit/s:
1
Wi-Fi Standard:
802.11b/g/n
Audio
Audio Output:
Built-in Speaker
Audio Input:
Line-in
Connectors / Cables
Connectors:
HDMI, RJ45 Ethernet, 2xUSB, Line In
System Power Input
Input Voltage DC:
12 ... 24 V
Software
Operating System Compatibility:
Android, Linux OS, Windows 8.1, Windows 10
Operating Conditions
Temperature:
0 ... 40 °C
Humidity:
0 ... 90 %
Dimensions and weight
Width:
391 mm
Height:
249 mm
Depth:
37 mm
Standards and Certifications
Certifications:
CE, FCC Class B
Options

Configuration

{{option[key].COUNT}}
{{option[key].name}} {{option[key].name}}
call ()
Operation System Price costs
not installed
15.6" Semi Idustrial Ultra Slim Panel PC, FHD, 220cd/m2, Projective Capacitive Multi-Touch, Intel Atom Z3735F 1.33GHz CPU, 2GB DDR3L, 32GB eMMC, HDMI, 1x100 Mbps,2xUSB, 1xCOM, WiFi802.11b/g/n, 19V Power adapter, Windows 8.1
15.6" Semi Idustrial Ultra Slim Panel PC, FHD, 220cd/m2, Projective Capacitive Multi-Touch, Intel Atom Z3735F 1.33GHz CPU, 2GB DDR3L, 32GB eMMC, HDMI, 1x100 Mbps,2xUSB, 1xCOM, WiFi802.11b/g/n, 19V Power adapter, Windows 10
15.6" Semi Idustrial Ultra Slim Panel PC, FHD, 220cd/m2, Projective Capacitive Multi-Touch, Intel Atom Z3735F 1.33GHz CPU, 2GB DDR3L, 32GB eMMC, HDMI, 1x100 Mbps,2xUSB, 1xCOM, WiFi802.11b/g/n, 19V Power adapter, Linux Ubuntu 16.04
15.6" Semi Idustrial Ultra Slim Panel PC, FHD, 220cd/m2, Projective Capacitive Multi-Touch, Intel Atom Z3735F 1.33GHz CPU, 2GB DDR3L, 32GB eMMC, HDMI, 1x100 Mbps,2xUSB, 1xCOM, WiFi802.11b/g/n, 19V Power adapter, Android 5.1

Dimensions

Weight

weight brutto: 3.5 kg
weight netto: 2.7 kg
