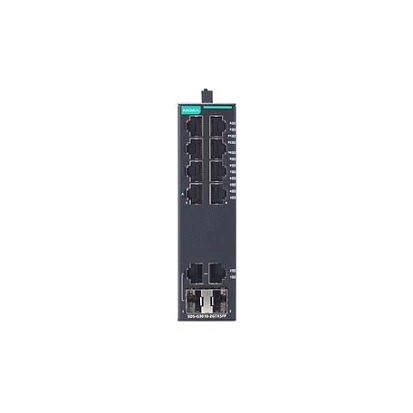

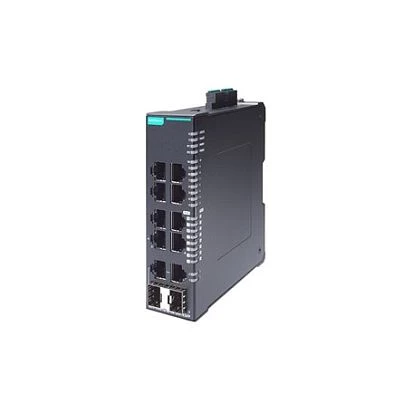

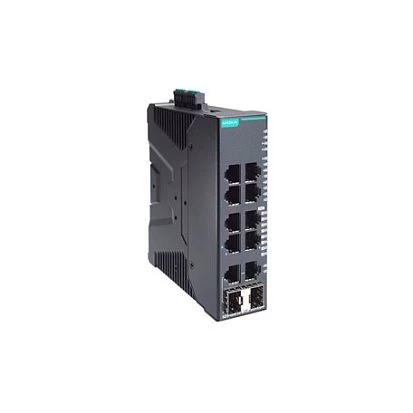

Industrial 10-ports smart Ethernet switch, 8x10/100BaseT(X) RJ45, 2xCombo 10/100/1000BaseT(X) or 100/1000BaseSFP, relay output 1A@24VDC, -40...+75C, 9.6-60VDC-in
SDS-G3010-2GTXSFP-T
MOXA
SKU: 11675400
Price on request
Available on order
Available on order
Ethernet
Total Ethernet
10
10/100/1000 Mbit/s
8
Type 10/100/1000 Mbit/s
RJ-45
SFP 100/1000 Mbit Ports
2
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported functions
Port Lock, Broadcast Storm Protection, Trusted Access Control
Supported Protocols
Industrial Protocols
EtherNet/IP, PROFINET, Modbus TCP
Managment Protocols
SNMPv1/v2c/v3, LLDP, Syslog, RMON, DHCP Client, SNMP Inform
Reservation protocols
STP, MRP, RSTP
Security Protocols
HTTPS, SSL
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Redundant power input
Yes
Input Voltage DC
10..60 V
Power Supply Reserve input Voltage DC
10..60 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP40
Dimensions and weight
Width
36 mm
Depth
135 mm
Height
111 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
EMI
en_55032, EN 61000-6-4, CISPR 32, en55035, fcc_part_15b_class_a
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Safety
UL 61010-2-201, IEC 62368-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.77 kg
Gross Weight
1 kg
