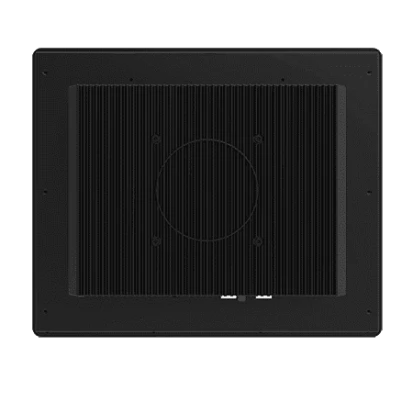

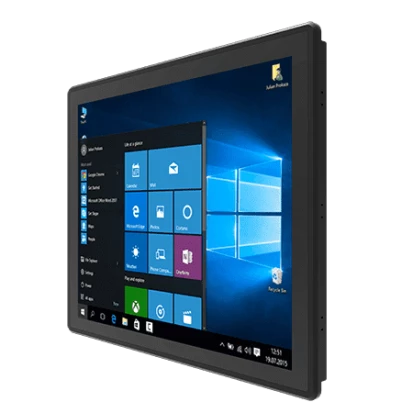

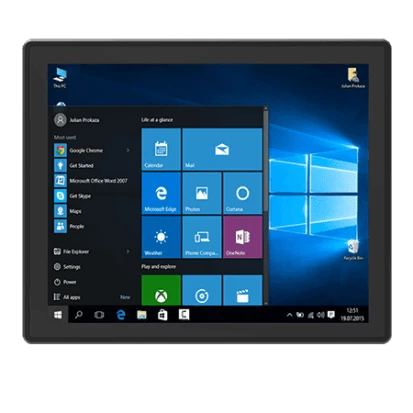

17" Rugged Panel PC, C1D2/IECEx/ATEX Compliant, Full IP65, 1280x1024, 350cd/m2, PCAP Touch, Intel Core i5-1135G7 2.4GHz CPU, 4GB DDR4 RAM, 128GB NVMe SSD, DP, 3xCOM, 4xUSB 3.2, 2xGbE LAN, Audio, 2.5" Bay, 1xM.2 Key-E, 1xPCIe x16, 9-29VDC-in w/ PSU
R17ITWS-MHA1-EX
Winmate
SKU: 09848700
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
17 "
Maximum resolution
1280x1024 Dots
Brightness
350 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1135G7
Socket
FCBGA 1449
Max CPU frequency
4.2 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
1
RS-232/422/485
2
USB Total
4
USB v3.x
4
Drive interfaces
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
4
PCI Express x16
1
M.2
2
M.2 Form Factor
2280 M, 2230 E
Mini-PCIe/Mini Card
1
LED / Controls
LED
Power LED, SSD LED
Controls
On/Off, 1xReset
Connectors
Connectors
3xDB9, 2xRJ45 Ethernet, 4xUSB, Audio, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
9..29 V
Power Consumption
65 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Ubuntu, Windows 11
Dimensions and weight
Width
393 mm
Height
325 mm
Depth
94.4 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Vibration
MILSTD810G Method 514.6
Standards and Certifications
Certifications
CE, FCC
Explosion safety
IECEx, ATEX Zone 2
Oil And Gas
Class I Div.2 Groups A, B, C, D
Dimensions
Net Weight
7 kg
Gross Weight
8.2 kg
