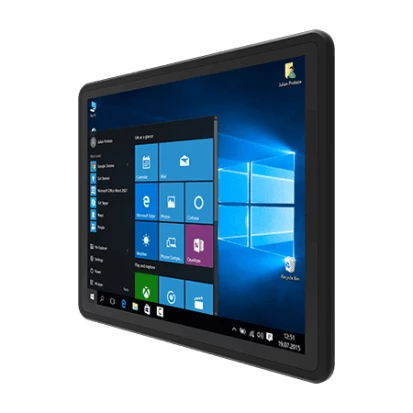

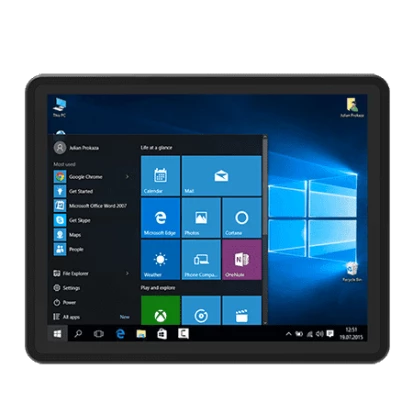

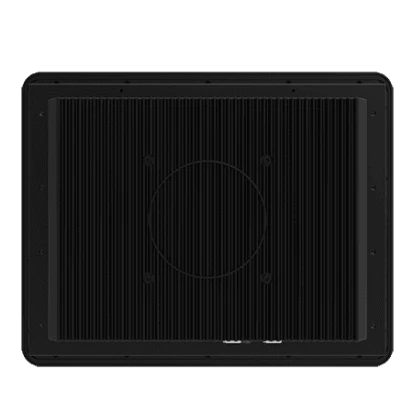

15" IP65 Front TFT LCD Panel PC with P-Cap touch, Intel Core i5-1135G7 2.4GHz, 4GB DDR4, 128GB SSD M.2 NVMe, 2.5" Swap bay, Display Port, 3xCOM, 4xUSB 3.2, 2xLAN, Audio, M.2 Key E, PCIe x4, power adapter
R15ITWS-MHB1-EX
Winmate
SKU: 09848500
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
300 Cd/m2
Contrast Ratio
2000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1135G7
Max CPU frequency
4.2 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Default on Board Memory
4 GB
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
1
RS-232/422/485
2
USB Total
4
USB v3.x
4
Drive interfaces
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
128 GB
Extension Slots
Total
3
PCI Express x16
1
M.2
1
Mini-PCIe/Mini Card
1
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
3xDB9, 2xRJ45 Ethernet, 4xUSB, Audio, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
9..29 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Windows 10, Windows 11
Dimensions and weight
Width
367 mm
Height
291 mm
Depth
91 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
MILSTD810G Method 514.6
Standards and Certifications
Certifications
CE, FCC
Explosion safety
UL/cUL Class I Division 2
Dimensions
Gross Weight
12 kg
Documentation
