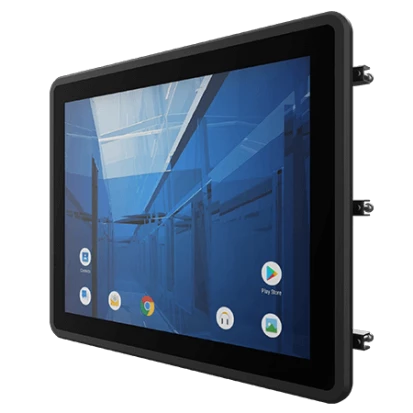

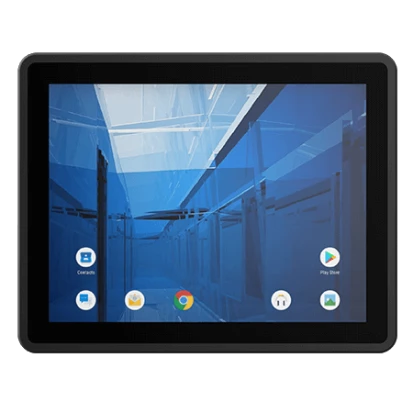

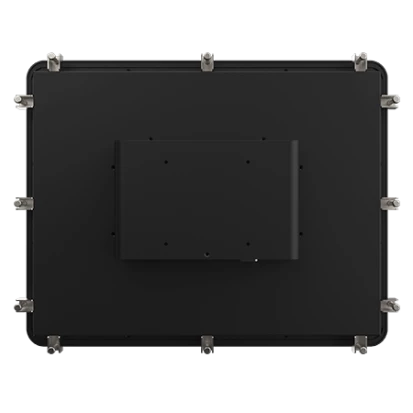

15" Fanless Panel PC, E Series, IP65 Front, 1024x768, 300 cd/m2, PCAP Touch, ARM Cortex-A53 Quad-Core 2.0GHz SoC, 4GB LPDDR4 RAM, 32GB eMMC, 1xMicroHDMI (Optional), 1xCOM, 2xUSB 2.0, 1xMicro-USB 2.0 OTG, 1xGbE LAN, 1xMicroSD, 12VDC-in w/ PSU
R15IM3S-EHC3
Winmate
SKU: 10298300
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
300 Cd/m2
Contrast Ratio
2000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
ARM Cortex
Socket
CPU onboard
Max CPU frequency
2 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
3
USB 2.0
3
Drive interfaces
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
32 GB
Connectors
Connectors
DB9, RJ45 Ethernet, 2xUSB, DC input (terminal block), MicroSD card slot, Micro HDMI, USB type C
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
50 W
Software
Operating System Compatibility
Android, Ubuntu
Dimensions and weight
Width
367 mm
Height
291 mm
Depth
65.8 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Dimensions
Net Weight
3 kg
Gross Weight
3.8 kg
