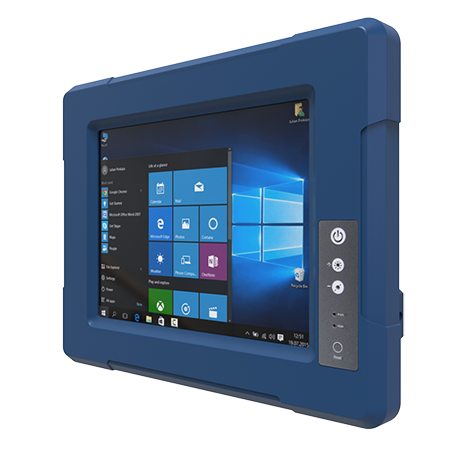

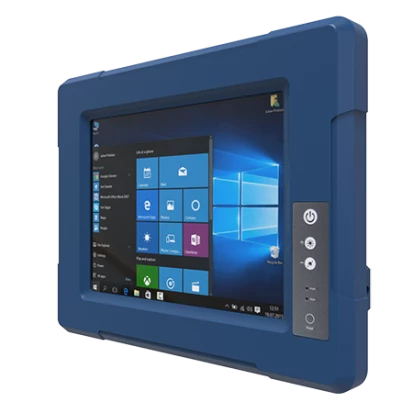

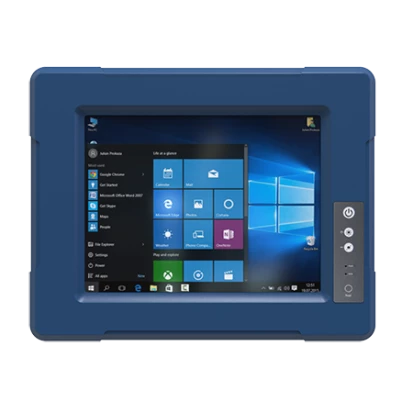

10.4" Vehicle Panel PC, G-WIN VM Series, IP65 Front, 1024x768, 350cd/m2 (HB Opt.), Intel Celeron N6211 1.2GHz CPU, 4GB DDR4 RAM, 128GB SATA SSD, HDMI Opt., 2x2.5GbE LAN, 2xCOM, 2xUSB 3.2, 1xM.2 2230 Key-E, 1xM.2 2242 Key-B, 10-60VDC-in, -10..55C
R10IE3S-VMT2
Winmate
SKU: 10752700
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration

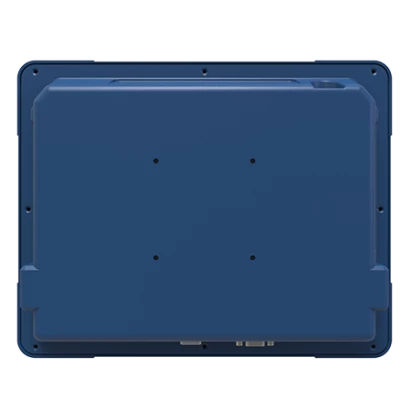

Wall VESA 75, Yoke mounting
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Brightness
350 Cd/m2
Contrast Ratio
1000~1
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Celeron N6211
Socket
FCBGA1493
Max CPU frequency
3 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
SATA
1st Storage Capacity
128 GB
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2242 M, 2230 E
LED / Controls
LED
Power LED
Controls
On/Off, KeyPad
Connectors
Connectors
2xDB9, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
10..60 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows IoT Enterprise 10, Windows 11, Ubuntu 20.04
Dimensions and weight
Width
315 mm
Height
250 mm
Depth
67 mm
Operating Conditions
Operating Temperature
-10..55 °C
Humidity
10-90%
Vibration
MIL-STD-810G Method 514.6 Procedure I
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration
Rolling Stock
EN 50155
Dimensions
Net Weight
2.9 kg
Gross Weight
3.3 kg
