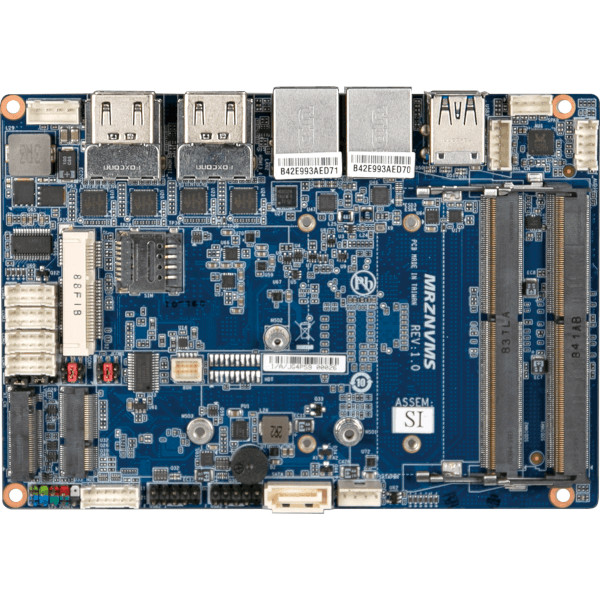

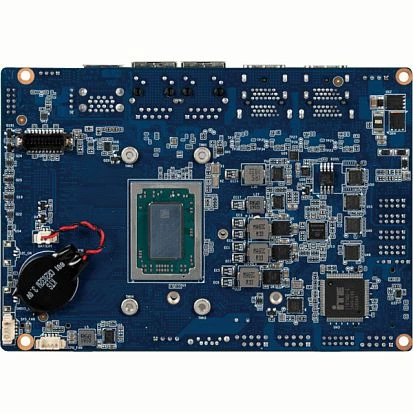

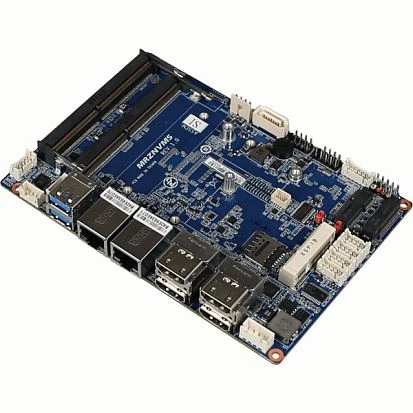

3.5" SBC, Embedded Motherboard with AMD Ryzen V1605B, 2x SO-DIMM up to 32GB DDR4 RAM, 4x HDMI 2.0 with eDP, 2x Gbit LAN, M.2 2280 M-key /PCIe x4,SATA) HDMI, Mini-PCIe, 1xSATA, 4xCOM, 6xUSB, TPM 2.0, 9..36V DC-In
QBiP-1605B
GIGAIPC
SKU: 57397800
Price on request
Available on order
Available on order
System Architecture
Form Factor
3.5"
CPU
Processor Installed
AMD Ryzen V1605B
Max CPU frequency
3.6 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Graphic
Interfaces
4xHDMI, eDP
Ethernet
Controller Type
Realtek RTL8111HS
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
6
USB 2.0
4
USB v3.x
2
Audio
Audio Controller
Realtek HD Audio Codec
Extension Slots
Total
3
SIM Card slots
Yes
M.2
2
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Hardware
Connectors
Internal Ports
4xCOM, SATA 3, 4xUSB 2.0, GPIO, Display port
Connectors

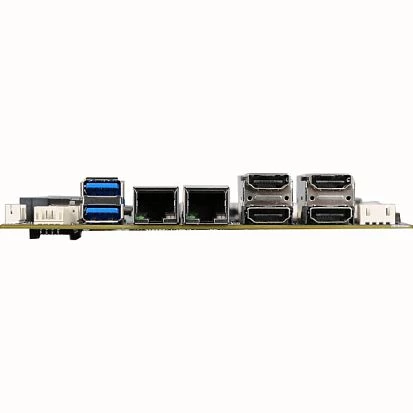

4xDB9, 2xRJ45, 6xUSB, Mic In, Line Out, Display Port, DB15 GPIO, 4xHDMI
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
146 mm
Length
101.7 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.35 kg
Gross Weight
0.7 kg
