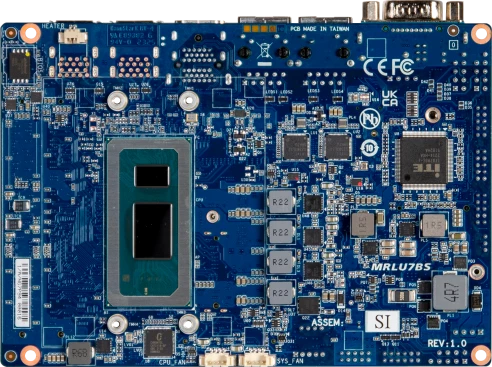

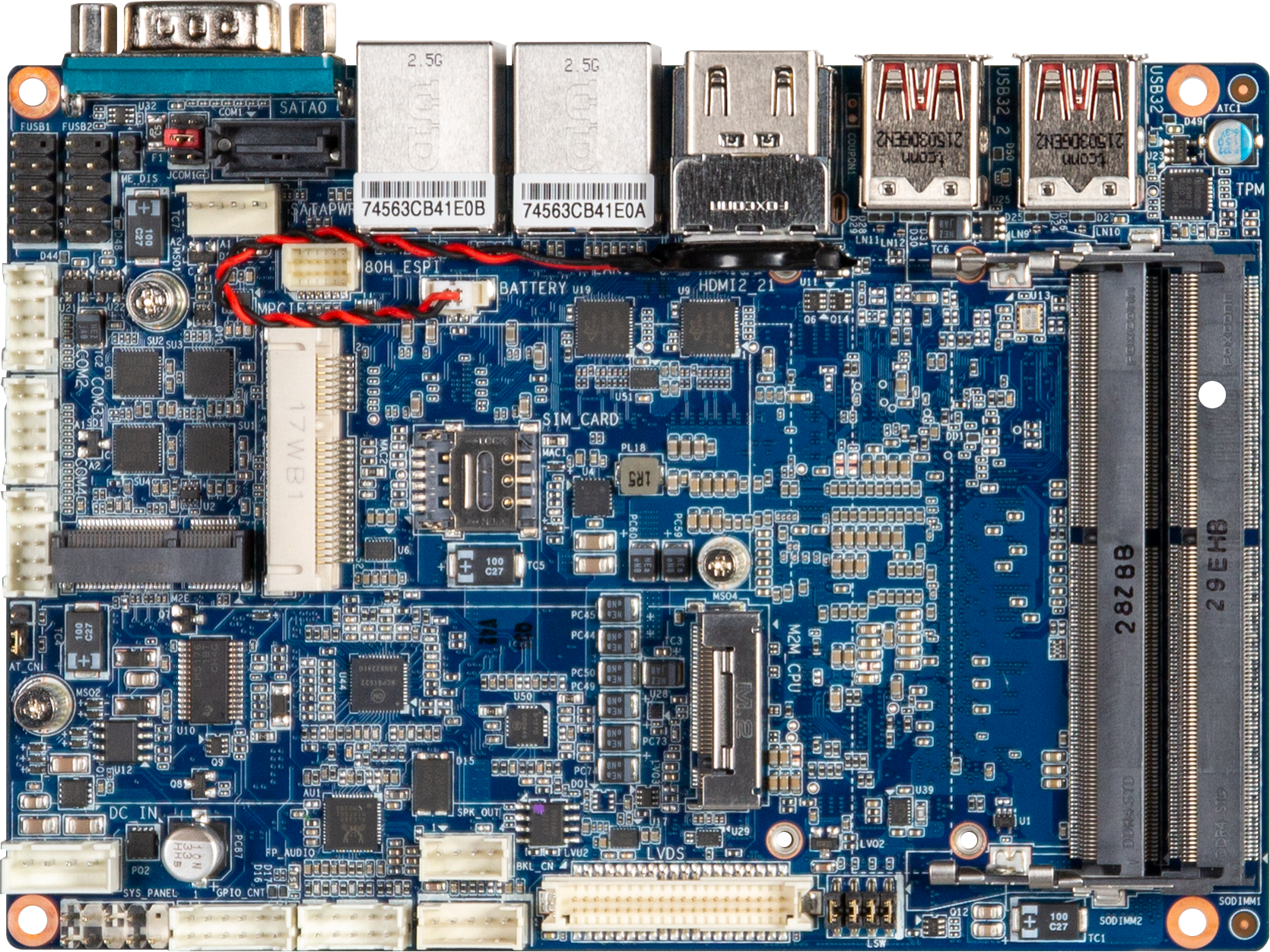

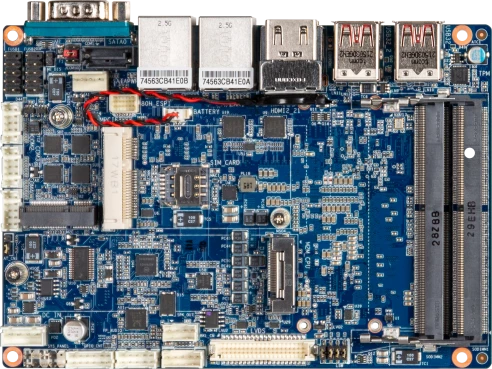

3.5" Embedded SBC, Intel 13th Gen Core i5-1335U 4.7GHz CPU, Up to 64GB DDR4 RAM, 2xHDMI, LVDS, 2x2.5GbE LAN, 1xSATA, 1xRS232/422/485, 3xCOM headers, 4xUSB 3.2, 4xUSB 2.0 headers, 2xM.2, 1xMiniPCIe, SIM, 1x8-bit GPIO, Audio, 9-36VDC-in, 0..+60C
QBiP-1335B
GIGAIPC
SKU: 57818900
Price on request
Available on order
Available on order
System Architecture
Form Factor
3.5" Half-Size SBC
CPU
СPU Generation/Family
Raptor Lake
CPU Support Type
Core i5
Processor Installed
Intel Core i5
Socket
CPU onboard
Max CPU frequency
4.7 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Intel Iris Xe Graphics
Interfaces
2xHDMI
Ethernet
Controller Type
Intel i226V
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
8
USB 2.0
4
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC269
Drive interfaces
SATA 3
1
M.2
1
Extension Slots
Total
3
SIM Card slots
Yes, 1
M.2
2
M.2 Form Factor
2280 M, 2230 E
Mini-PCIe/Mini Card
1
Connectors
Connectors
DB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, DC input (terminal block)
Software
Operating System Compatibility
Windows 10, Windows 11
Dimensions and weight
Width
146 mm
Length
101.7 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-90%
Dimensions
Net Weight
0.65 kg
Gross Weight
1.05 kg
