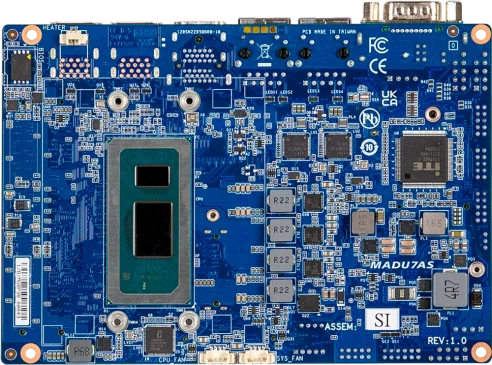

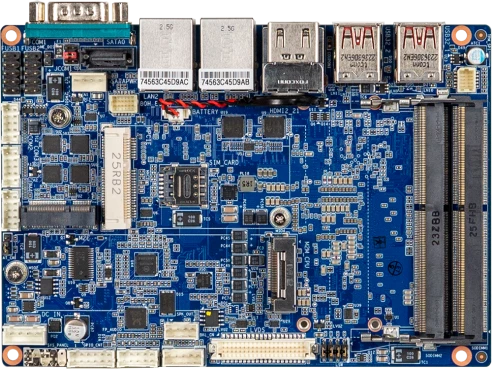

3.5" Embedded SBC, Intel 12th Gen Core i5-1235U 4.4GHz CPU, Up to 64GB DDR4 RAM, 2xHDMI/LVDS, 2x2.5GbE LAN, 1xSATA, 1xRS232/422/485, 3xCOM headers, 4xUSB 3.2, 4xUSB 2.0 headers, 2xM.2, 1xMiniPCIe, SIM, 1x8-bit GPIO, Audio, 9-36VDC-in, 0..+60C
QBiP-1235A
GIGAIPC
SKU: 57833200
Price on request
Available on order
Available on order
System Architecture
Form Factor
3.5" Half-Size SBC
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i5-1235U
Socket
CPU onboard
Max CPU frequency
4.4 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel Iris Xe Graphics
Interfaces
LVDS, 2xHDMI
Ethernet
Controller Type
Intel i226V
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
8
USB 2.0
4
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek HD Audio Codec
Drive interfaces
SATA 3
1
RAID Levels
0, 1
M.2
1
Extension Slots
Total
3
SIM Card slots
Yes, 1
M.2
2
M.2 Form Factor
2280 M, 2230 E
Mini-PCIe/Mini Card
1
Connectors
Connectors
4-pin ATX, DB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB
Software
Operating System Compatibility
Windows 10, Windows 11
Dimensions and weight
Width
146 mm
Length
101.7 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
0-95%
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.38 kg
Gross Weight
0.5 kg
