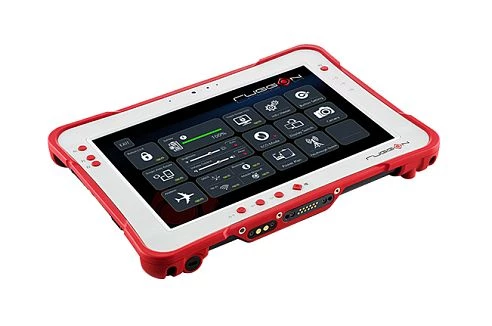

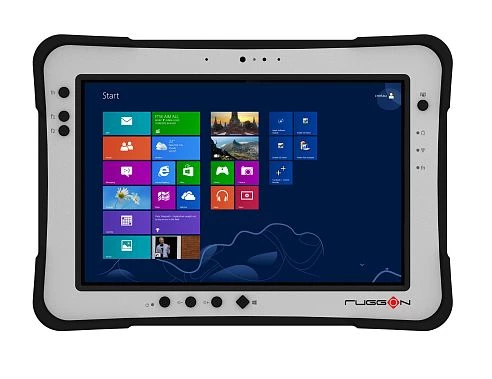

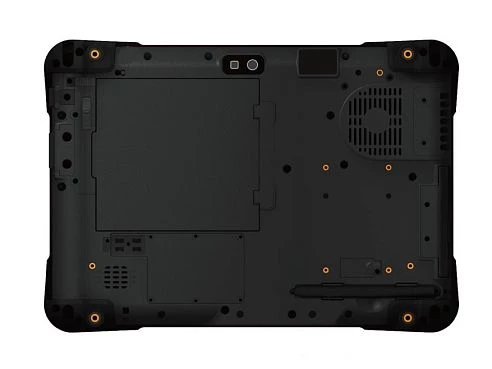

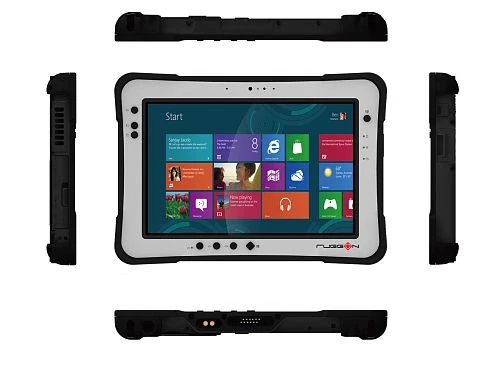

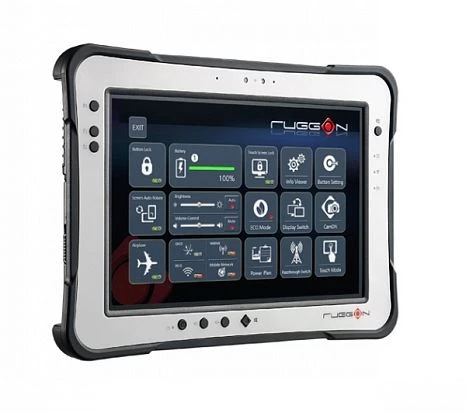

PX-501(GenIII)

Rugged IP65 Tablet PC, 10.1" WUXGA, 1920x1200, Intel Core i5-7300U 2.6 GHz CPU, Up to 8GB RAM, 128GB SSD, Micro HDMI, 1xLAN, 1xCOM, 2xUSB, Micro SIM, Micro SD, GPS, Wi-Fi, BT, GNSS, 2/8MP Cam, 4500mAh hot swap Battery

Price on request ()
pcs.
To order
Add to Watch List Remove from Watch List
Add to compare Compare
Vendor:
Ruggon
Construction Chassis:
Rubber
Protection Level of Front Side (Panel):
IP65
Protection Level of Chassis:
IP65
Diagonal:
10.1 "
Maximum Resolution:
1920 x 1200 Dots
Touch Screen Type:
Capacitive
Processor Installed:
Intel Core i5-7300U
Frequency:
2.6 GHz
Specification
Vendor
Name:
Ruggon
Construction
Construction Chassis:
Rubber
Protection Level of Front Side (Panel):
IP65
Protection Level of Chassis:
IP65
Display
Display Type:
LCD (Gorilla Glass)
Diagonal:
10.1 "
Maximum Resolution:
1920 x 1200 Dots
Brightness:
1000 Nt
Touch Screen
Touch Screen Type:
Capacitive (supports glove touch, water rejection, dimming option)
Multitouch:
Yes
CPU
Processor Installed:
Intel Core i5-7300U
Frequency:
2.6 GHz
Memory
Memory Type:
DDR4 RAM
Default on Board Memory:
8 GB
Storage
mSATA Support:
Yes
Capacity preinsatlled mSATA:
128 GB (Optional 256 GB)
microSD Socket:
Yes
Interfaces
COM Total:
1
RS-232:
1
USB Total:
3 (Опционально)
USB 3.0:
2 (USB 3.1 Type A, USB 3.1 Type C)
Network Adapter
Total Ethernet:
1
10/100/1000 Mbit/s:
1
Type 10/100/1000 Mbit/s:
RJ-45
Wi-Fi Standard:
802.11ac/a/b/g/n
Additional Functions
Camera Frontside:
2 MP
Rear Camera:
8 MP
Quantity of SIM Card:
Micro-SIM
LTE (4G) Support:
Yes (Optional)
3G:
Yes (Optional)
Bluetooth:
v4.0
NFC:
Yes (Optional)
GPS:
Yes (GPS/GLONASS/BeiDou)
Barcode Scanner:
2D (Optional)
MSR-reader:
Yes (Optional)
Sensors:
Light Sensor, G-sensor, Gyroscope, Accelerometer
Smart Card reader:
Yes (Optional)
Audio
Audio Output:
Built-in Speaker, Line-out (Audio jack (headphone/microphone combo) )
Audio Input:
Built-in Microphone, Line-in (Audio jack (headphone/microphone combo))
LED / Controls
LED:
Battеry Status, 1xOn/Off LED, WLAN LED
Control Switches:
On/Off, Control Buttons, Function Keys, Volume Keys
Connectors / Cables
Connectors:
DB9, RJ45 Ethernet, 2xUSB, Audio (in/out/Mic), MicroSD card slot, Micro HDMI, Micro-SIM card slot
Docking Station:
Yes
Power Supply
Type of Power Supply:
External power adapter AC/DC
Output Power:
65 W
Output Voltage DC:
19 ... 19 V
Input Voltage AC:
100 ... 240 V
Supported Types of Power Supply:
External power adapter AC/DC
Battery
Battery 1 Capacity:
4500 mA*h (Optional 9000 mA*h)
RunTime Battery 1:
6.5 h (Opttional 13 hours)
Software
Operating System Installed:
Windows 10 ( IoT Enterprise (Option))
Operating System Compatibility:
Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 7 Professional, Windows Embedded 8.1 Industry
Operating Conditions
Temperature:
-20 ... 60 °C
Humidity:
5 ... 95 %
Storage Conditions
Temperature Range:
-30 ... 70 °C
Humidity:
5 ... 95 %
Dimensions and weight
Width:
280 mm
Height:
195 mm
Depth:
23 mm
Standards and Certifications
MIL-STD-810:
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock, MIL-STD-810G Test Method 516.4 Drop 120 cm
Documentation

Dimensions

Weight

weight brutto: 2.3 kg
weight netto: 1.36 kg
