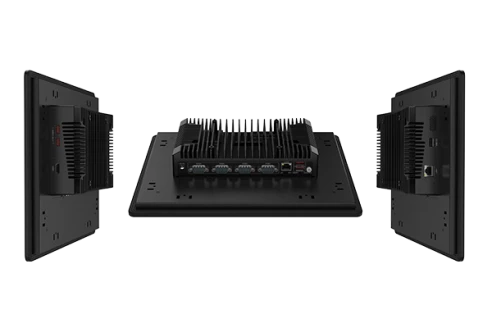

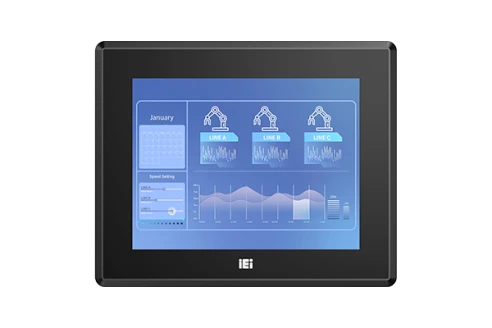

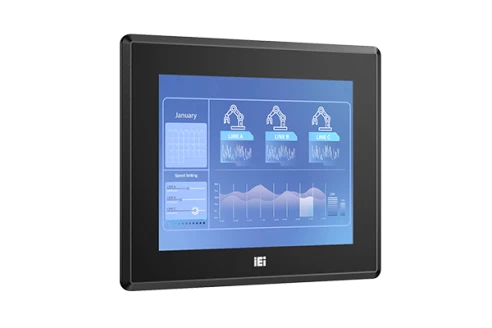

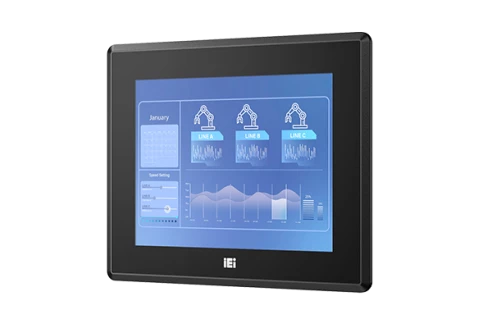

10.4" 800x600 Fanless Front IP65 Panel PC with PCAP Touch,Intel Core i3-1220P,8GB LPDDR4x,HDMI, 2x2.5GbE LAN, 4xCOM,5xUSB,M.2,12VDC
PPC2-C104-ADLP-i3/8G
IEI
SKU: 11090000
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Panel, Wall, 19" Rackmount, Wall VESA 100, Arm
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
800x600 Dots
Aspect Ratio
4:3
Brightness
400 Cd/m2
Contrast Ratio
700~1
Input Interface
HDMI
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i3-1220P
Max CPU frequency
4.4 GHz
Memory
Form-factor
DDR4
Socket Type
Soldered
Default on Board Memory
8 GB
Maximum Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i225LM, Intel i225V, Intel i226-LM, Intel i226V
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
5
USB 2.0
1
USB v3.x
4
Extension Slots
Total
3
M.2
3
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
4xDB9, HDMI, 2xRJ45, 5xUSB
System Power Input
Input Voltage DC
12..12 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
390 mm
Height
340 mm
Depth
200 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
3.6 kg
Gross Weight
5.6 kg
