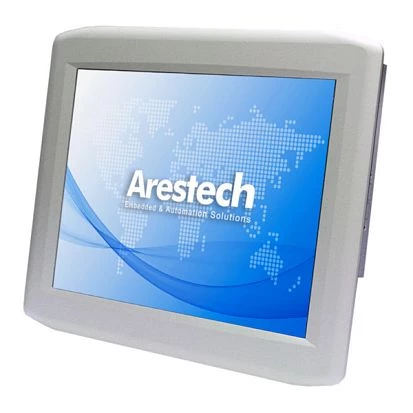

19" Fanless Panel PC, Aluminum IP66 front panel, 350 cd/m2, 1280 x 1024, PCAP Touch Screen, Intel Core i5-8265 1.6 GHz CPU, Up to 32GB DDR4, 2.5" SATA Bay, 2xHDMI, 2x Gbit LAN, 4xUSB, 4xCOM, 8-bit DI/DO, 9.36V DC-In, -20..+60C oper.temp.
PPC-N198P-1A1
Arestech
SKU: 57031200
Price on request
Available on order
Available on order
PPC-N198P-1A1
PPC-N198P-1A1 Industrial Panel PC with Whiskey Lake CPU, 19'' Touch Screen, 2x M.2, 1x Mini Card, 4x USB, 4x COM, Dual LAN, 8x GPIO The PPC-N198P-1A1 belongs to a new generation of powerful Industrial Panel PCs, which are based on the 8th generation Intel Core i3/i5/i7 processors Whiskey Lake and combine them with a versatile range of interfaces including Serial COM, USB 3.1 and Dual Gigabit LAN as well as a robust IP66 design.
Construction
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Aspect Ratio
4:3
Brightness
350 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Whiskey Lake
Processor Installed
Intel Core i5-8265U
Max CPU frequency
3.9 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Ethernet
Controller Type
Intel i219-V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
4
USB v3.x
4
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
M.2
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
4xDB9, 2xHDMI, 4xUSB
System Power Input
Input Voltage DC
9..36 V
Power Consumption
16.5 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows IoT Enterprise 10, Linux kernel 4.x
Dimensions and weight
Width
456 mm
Height
393 mm
Depth
69 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes
Shock
20 G, IEC 60068-2-27, half sine, 11 ms duration
Dimensions
Net Weight
5.73 kg
Gross Weight
9 kg
