PPC-321SW-PDI5A

PPC-321SW-PDI5A

Advantech
SKU: 80113300

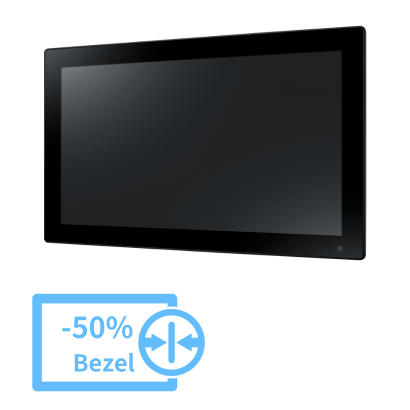

21.5" Fanless PPC-321SW Panel PC, IP66 Front, 1920x1080, 250cd/m2, PCAP Touch, Intel Core i5-1335UE CPU, Up to 32GB DDR5 RAM, DP, 2x2.5GbE LAN, 3xUSB 3.2, 1xUSB 2.0, 2.5" Drive Bay, 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, Audio, 24VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Raptor Lake
Processor Installed
Intel Core i5-1335UE
Socket
FCBGA1744
Max CPU frequency
4.5 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i226-LM
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB 2.0
1
USB v3.x
3
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2242 M, 2280 M, 2230 E, 3052 B, 3042 B, 2242 B
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
On/Off
Connectors
Connectors
2xDB9, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input, Display Port
System Power Input
Input Voltage DC
24..24 V
Power Consumption
80 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
529.6 mm
Height
321.3 mm
Depth
53.4 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class B
Safety
CCC, CB, UL, BSMI
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
6.35 kg
Gross Weight
7.7 kg
