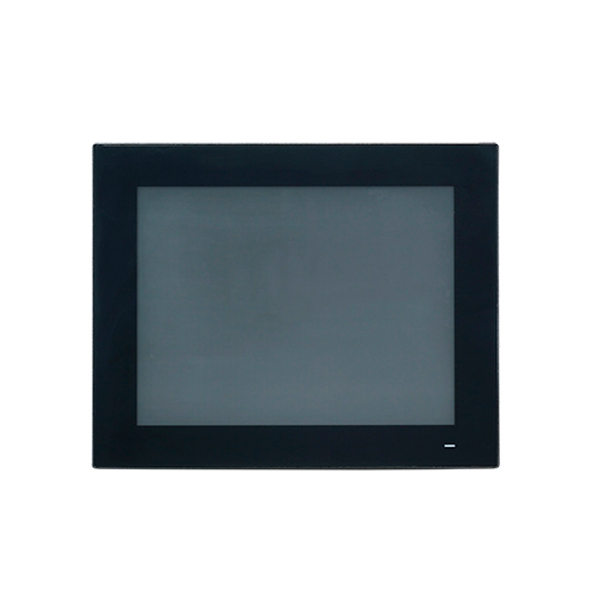

15" TFT XGA LCD LED Fanless PPC with Intel Core i5-6300U 2.4GHz with projected capacitive touch, 1xSO-DIMM DDR4 1866/2133, 1x2.5" SATA bay, M/2, VGA, DisplayPort, 2xGbE LAN, 3xCOM, 4xUSB 3.0, 1xMiniPCIe, 1xPCIe x4, Audio, power supply 9...32V DC
PPC-3151-650AE
Advantech
SKU: 07627800
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Desktop, Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
500 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Skylake
Processor Installed
Intel Core i5-6300U
Max CPU frequency
3 GHz
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
2
RS-422/485
1
USB Total
4
USB v3.x
4
Drive interfaces
M.2
1
Storage Cage
2.5" Cage Intenal
1
Extension Slots
PCI Express x4
1
Mini-PCIe/Mini Card
1
PCI
1
LED / Controls
LED
1xOn/Off LED, Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, DB15 VGA, 2xRJ45 Ethernet, 4xUSB, Audio, Display Port, DC input (terminal block), Terminal block
System Power Input
Input Voltage DC
9..32 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Dimensions and weight
Width
391.4 mm
Height
312.5 mm
Depth
55.35 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC Class B
Safety
CCC, CB, BSMI
Dimensions
Net Weight
5.4 kg
Gross Weight
6.92 kg
