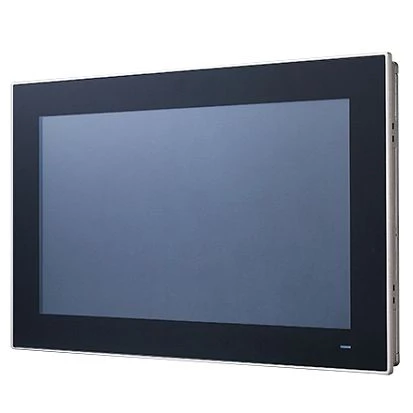

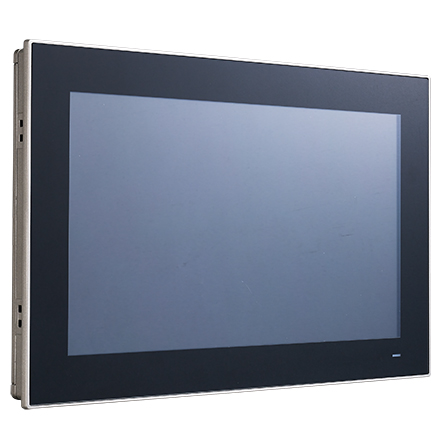

15.6" Fanless Widescreen Panel PC with projected capacitive touch, Intel Pentium N4200 1.1GHz, DDR3L, HDMI, 2xGbE LAN, 2xCOM, 2xUSB 3.0, 2xUSB 2.0, 2.5" SATA Bay, mSATA, MiniPCIe, Audio
PPC-3150SW-PN4A
Advantech
SKU: 66523000
Price on request
Available on order
Available on order
Construction
Mounting Configuration
Desktop, Wall, Wall VESA 75, Arm
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1366x768 Dots
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Pentium N4200
Socket
CPU onboard
Max CPU frequency
2.5 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Connectors
Connectors

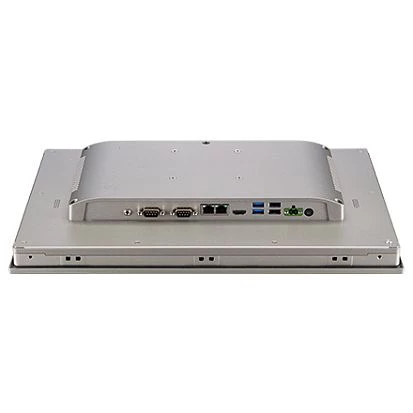

2xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC input (terminal block)
System Power Input
Input Voltage DC
12..24 V
Power Consumption
33 W
Software
Operating System Compatibility
Android, Linux OS, Windows IoT Enterprise 10, Windows 10
Dimensions and weight
Width
419.7 mm
Height
269 mm
Depth
58.6 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC Class B, EN 60601
Dimensions
Net Weight
4.7 kg
Gross Weight
6 kg
