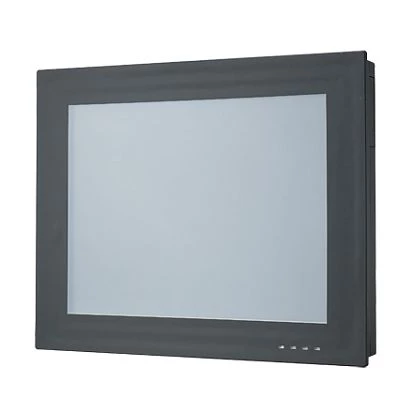

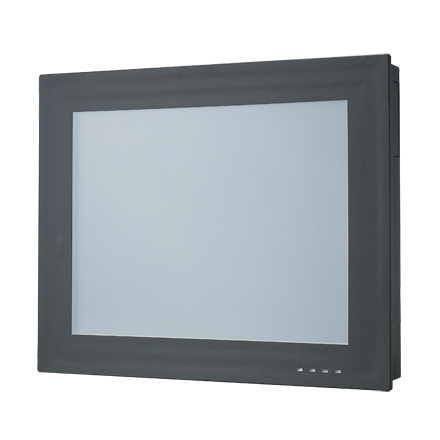

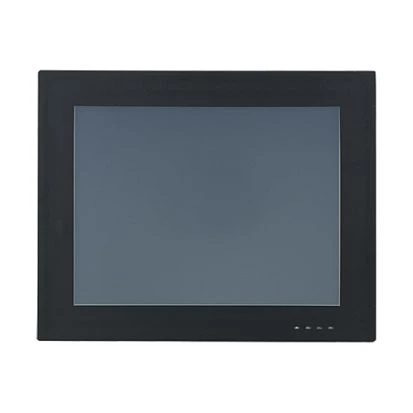

15" TFT XGA LCD LED Fanless PPC with Intel Atom E3845 1.91GHz with resistive touchscreen, true flat, 1x204-pin SO-DIMM DDR3L, 1x2.5" SATA bay, VGA, DisplayPort, 2xGbE LAN, 2xCOM, 1xUSB 3.0, 3xUSB 2.0, 1xPCI, Audio, power supply 9-32V DC
PPC-3150-RE4BE
Advantech
SKU: 66519100
Price on request
Available on order
Available on order
Construction
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
500 Cd/m2
Contrast Ratio
2500~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Atom E3845
Max CPU frequency
1.91 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
2
RS-422/485
1
USB Total
4
USB 2.0
3
USB v3.x
1
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
3
PCI Express x1
1
Mini-PCIe/Mini Card
1
PCI
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xOn/Off LED
Controls
On/Off

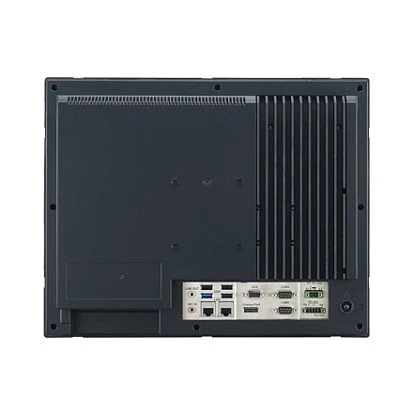

Connectors
Connectors
2xDB9, DB15 VGA, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, Display Port, DC input (terminal block), Terminal block
System Power Input
Input Voltage DC
9..32 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 7, Linux OS, Windows 8.1, Windows 10
Dimensions and weight
Width
392.26 mm
Height
313.56 mm
Depth
55.15 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
Operating Random Vibration Test 5 ~ 500Hz, 1Grms @with HDD, follow IEC 60068-2-64
Shock
Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Standards and Certifications
Certifications
CE, FCC Class A
Safety
CCC, CB, UL, BSMI
Dimensions
Net Weight
5 kg
Gross Weight
5.3 kg
