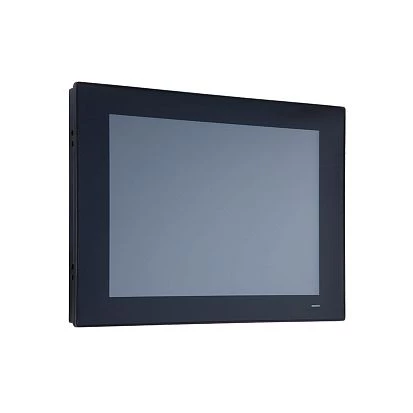

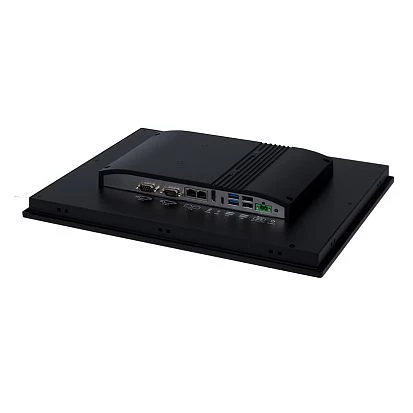

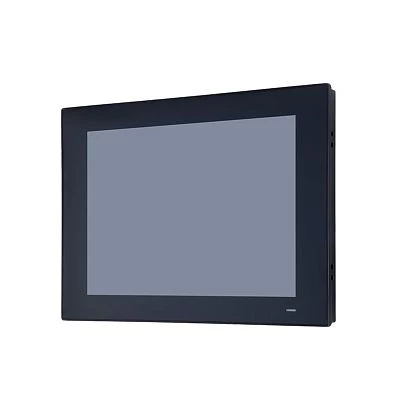

PPC-315-PJ60A
Advantech
SKU: 10955700
15" TFT XGA LED Fanless PPC with P-Cap touchscreen, Intel Celeron J6412 2.0GHz, DDR4, HDMI, 2x2.5 GbE LAN, 2xCOM, 2xUSB 3.1, 2xUSB 2.0, 1x2.5" SATA, M.2 E-key 2230, M.2 M-key 2242/2280, 12-30VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
300 Cd/m2
Contrast Ratio
2000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
FCBGA1493
Max CPU frequency
2 GHz
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i225LM
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
5
USB 2.0
2
USB v3.x
3
Drive interfaces
M.2
1
Extension Slots
Total
1
M.2
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, HDMI, 2xRJ45, 4xUSB, USB type C
System Power Input
Input Voltage DC
12..30 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Android, Linux OS, Windows 10 IoT Enterprise, Windows 11
Dimensions and weight
Width
392 mm
Height
314 mm
Depth
55 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
0-95%
Vibration
Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64
Shock
Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Standards and Certifications
Certifications
CE, FCC Class B, VCCI
Safety
CCC, CB, UL, BSMI
Dimensions
Net Weight
4.8 kg
Gross Weight
6.4 kg
