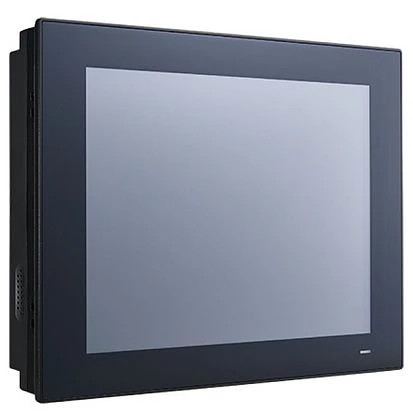

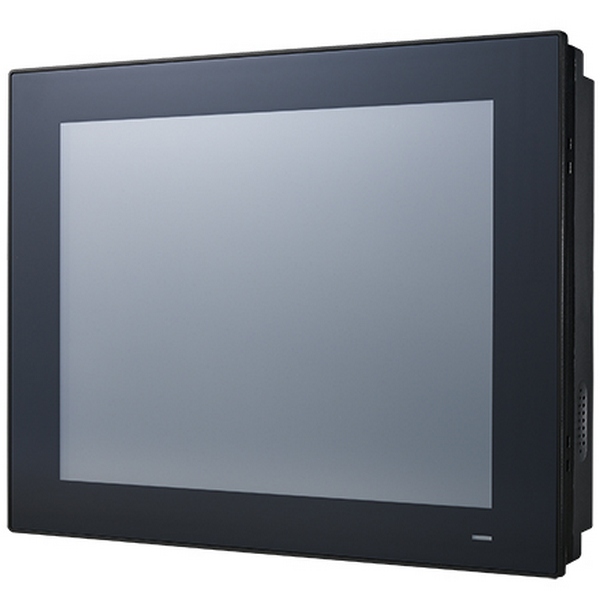

12.1" Fanless Panel PC with Intel Atom E3940 Processor, XGA LED backlight, with resistive touchscreen, DDR3L, VGA, HDMI, 2xGbE LAN, 5xCOM, 4xUSB 3.0, 1x2.5" SATA HDD, mSATA, 1xMini PCIe, 9...32VDC-in, IP65 Front
PPC-3120-RE9A
Advantech
SKU: 66509800
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Panel, Wall
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
12.1 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
600 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Atom E3940
Max CPU frequency
1.8 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
5
RS-232
4
RS-422/485
1
USB Total
4
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
AC97
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors

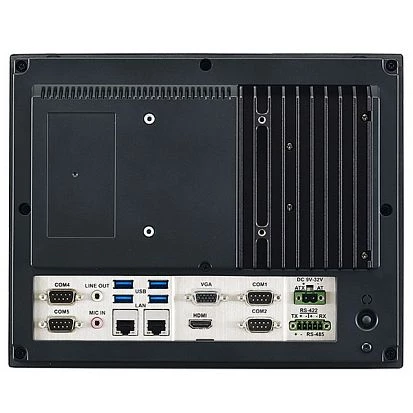

4xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, 1xDB15 DIO
System Power Input
Input Voltage DC
9..32 V
Power Consumption
32 W
Software
Operating System Compatibility
Android, Linux OS, Windows IoT Enterprise 10
Dimensions and weight
Width
317 mm
Height
246 mm
Depth
60.5 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC Class B
Safety
CCC, CB, UL, BSMI
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
3 kg
Gross Weight
3.5 kg
