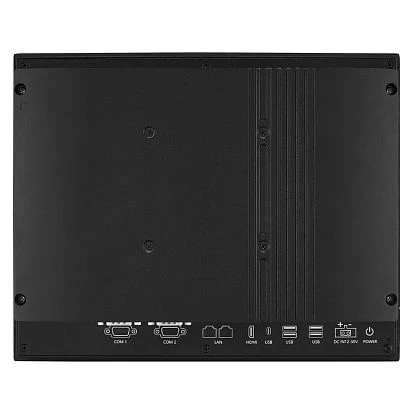

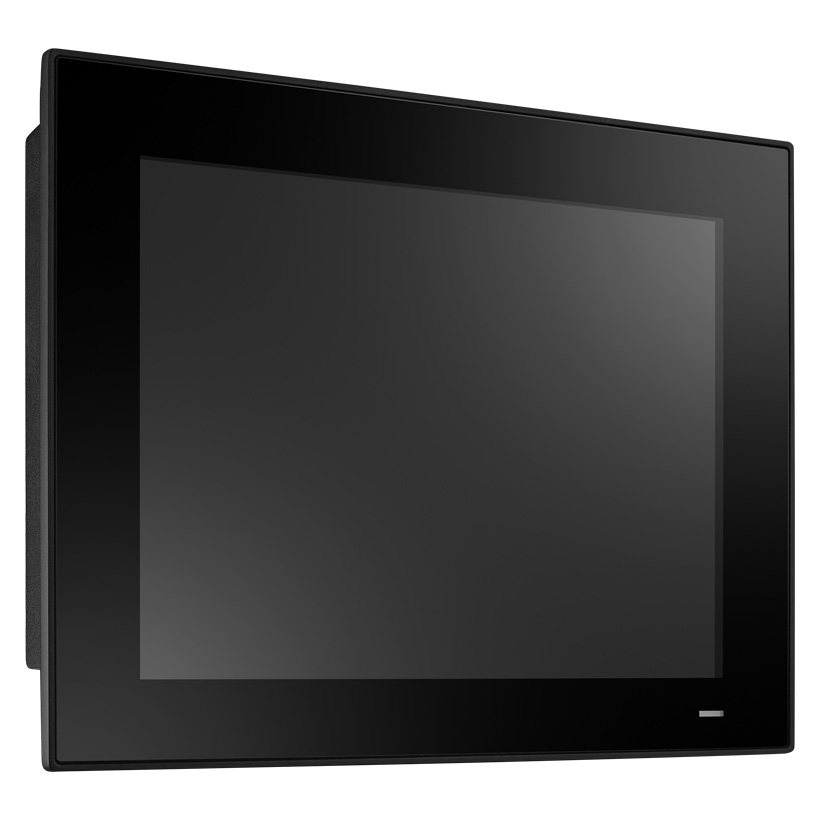

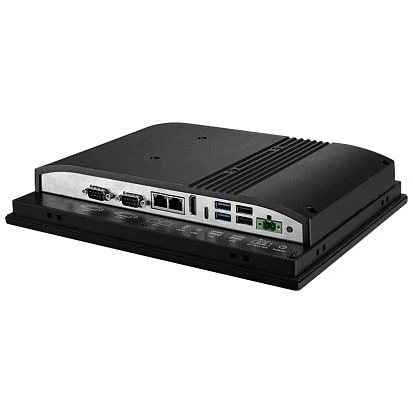

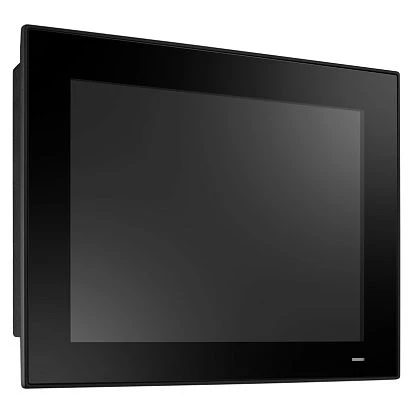

PPC-310-PJ60A
Advantech
SKU: 10955400
10.4" TFT XGA LED Fanless PPC with P-Cap touchscreen, Intel Celeron J6412 2.0GHz, DDR4, HDMI, 2x2.5 GbE LAN, 2xCOM, 2xUSB 3.1, 2xUSB 2.0, 1x2.5" SATA, M.2 E-key 2230, M.2 M-key 2242/2280, 12-30VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
350 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Max CPU frequency
2 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-LM
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
5
USB 2.0
2
USB v3.x
3
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
1
M.2
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, HDMI, 2xRJ45, 4xUSB, Line Out, DC input (terminal block), USB type C
System Power Input
Input Voltage DC
12..30 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Android, Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
271.8 mm
Height
216.8 mm
Depth
49.7 mm
Operating Conditions
Operating Temperature
-10..50 °C
Vibration
Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64
Shock
Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Standards and Certifications
Certifications
CE, FCC Class B, VCCI
Safety
CCC, UL
Dimensions
Net Weight
3 kg
Gross Weight
3.5 kg
