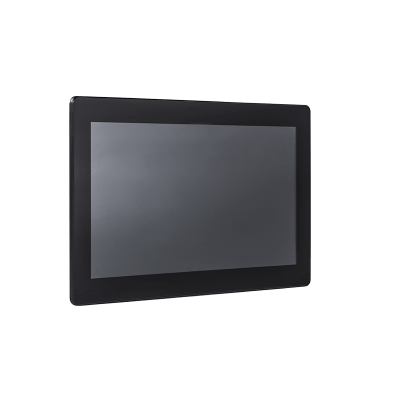

PPC-115W-PK92AB

PPC-115W-PK92AB

Advantech
SKU: 80068300
15.6" Fanless PPC-115W Panel PC, 1920x1080, PCAP touch, Rockchip RK3399 6-Cores, 4GB DDR4, 32GB eMMC, Micro SD slot, 1xGb LAN, xCOM, 1xUSB 3.0, 1xUSB 2.0, 1x Micro USB OTG, 12V DC-in, Android 11
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15.6 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Rockchip RK3399 64-bit (dual core ARM Cortex-A72, quad core ARM Cortex-A52)
Socket
CPU onboard
Max CPU frequency
1.8 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Realtek RTL8211E
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
2
USB Total
5
USB 2.0
4
USB v3.x
1
Drive interfaces
MicroSD
1
Installed drive
Storage Form-Factor
eMMC
1st Storage Capacity
32 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2230 E
LED / Controls
Controls
1xReset
Connectors
Connectors
DB9, RJ45 Ethernet, 2xUSB, DC Input, 1xMicro USB
System Power Input
Input Voltage DC
12..12 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Installed
Android
Dimensions and weight
Width
402 mm
Height
260 mm
Depth
53.2 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class B, VCCI
Safety
CCC, CB, UL
Dimensions
Net Weight
2.6 kg
Gross Weight
3.5 kg
